DESCRIPTION

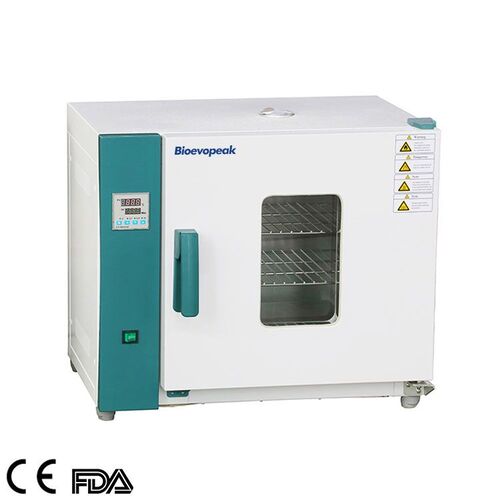

Drying Oven
1. Horizontal forced-air type, high space utilization, and good temperature uniformity
2. Anti-hot handle
Details
SPECIFICATIONS
| Model | DON-H45E /DON-H45 | DON-H70E /DON-H70 | DON-H140E /DON-H140 | DON-H230E /DON-H230 |
| Cycle Mode | Natural convection | |||
| Volume | 43L | 71L | 136L | 225L |
| Temp. Range | RT+10~250℃ | |||
| Temp. Resolution | 0.1℃ | |||
| Temp. Uniformity | ±2.5% | |||
| Inner Chamber Material | DON-H45/70/140/230: High quality stainless steel;DON-H45/70/140/230E: High strength galvanized sheet; | |||
| Structure | Temp. sensor: PT100;Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature sections; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; | |||
| Controller | Temp. sensor: PT100;Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature sections; Temp. display: LED display; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; | |||
| Timing Setting | 0~9999mins(with timing wait function) | |||
| Alarm | Over-temperature Alarm, audible and visual alarm | |||
| Shelves | 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm | |||
| Consumption | 1.2kW | 1.6kW | 2.3kW | 3.0kW |
| Power Supply | AC110/220V±10%, 50/60Hz | |||
| Internal Size(W*D*H) | 350*350*350mm | 450*350*450mm | 550*450*550mm | 600*500*750mm |
| External Size(W*D*H) | 652*472*587mm | 752*472*687mm | 852*572*786mm | 902*622*986mm |
| Package Size(W*D*H) | 755*615*735mm | 855*615*835mm | 955*715*935mm | 1005*765*1135mm |
| Net/Gross Weight | 33/37kg | 45/50kg | 62/68kg | 77/96 kg |
