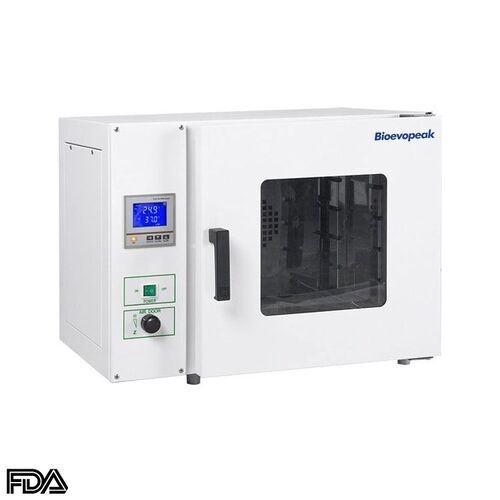

Forced Air Drying Oven, Horizontal Type, DOF-H55-A
Volume: 54L
Temp. Range(℃): RT+10~200
Temp. Fluctuation:±1℃
Temp. Uniformity:±2.5℃%

Description

DESCRIPTION

1. Horizontal and vertical forced air type, good temperature uniformity.

2. Microprocessor controller(with temperature correction and timing function), accurate and reliable.

3. Microprocessor controller with LCD display make the temperature accurate and reliable.

4. Working chamber adopts high-quality stainless steel and a round angle structure, easy to clean.

5. Silicon sealing ring for reliable sealing.

6. Leakage protector

7. Anti-hot handle.

8. Equipped with spare temperature control which ensures the product work normally even if the main temperature control fails.

Optional Accessories:

Multi-segment programmable control

Built-in Printer

RS485 interface.

forced-air-drying-oven

1. Equipped with leakage protection
2. Equipped with spare temperature control which ensures the product work usually even the main temperature control fails

forced-air-drying-oven

1. High-quality stainless steel chamber, removable shelf,
easy-to-clean
2. Silicon sealing ring for reliable sealing

forced-air-drying-oven

1. Microprocessor controller(with temperature correction
and timing function), accurate and reliable.
2. Large LCD screen display.

forced-air-drying-oven

Anti-hot handle

SPECIFICATIONS

ModelDOF-H55-A
Cycle ModeForced air convection
Volume54L
Temp. RangeRT+10~200℃
Temp. Resolution0.1℃
Temp. Fluctuation±1℃
Temp. Uniformity±2.5%
Timing Setting0~9999mins(with timing wait function)
Shelves2pcs/adjustable, totally can load 5pcs
Consumption600W
Power SupplyAC110/220V±10%, 50/60Hz
Internal Size(W*D*H)420*370*350mm
External Size(W*D*H)710*560*420mm
Package Size(W*D*H)820*660*690mm
Net/Gross Weight35/43kg
