Description

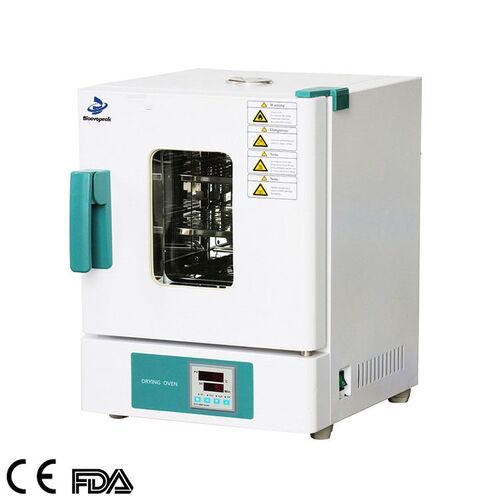

Drying Oven
1. Hot air is convected naturally and cyclically in the work room.
2. Intelligent Microcomputer PID temperature controller with digital display.
3. Anti-hot handle.
Optional Accessories:
1. Shelf
2. Programmable controller
Specifications
| Model | DON-18E | DON-18 |
| Cycle Mode | Natural convection | |
| Volume | 18L | |
| Temp. Range | RT+10~300℃ | |
| Temp. Resolution | 0.1℃ | |
| Temp. Uniformity | ±3.5% | |
| Inner Chamber Material | Temp. sensor: PT100;Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature sections; Setting temperature: display on the lower row; Measuring temperature: display on the four digital tubes upper row; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; | Mirror Stainless Steel |
| Structure | External material: cold rolling steel electrostatic spraying; Insulation: High quality rock wool board (with CE); Heater: Nickel chromium alloy heating wire; Exhaust hole: φ28mm top (with the function of test hole); | |
| Controller | Temp. sensor: PT100;Temp. set: soft touch button; Temp. control: Intelligent PID for Two temperature sections; Setting temperature: display on the lower row; Measuring temperature: display on the four digital tubes upper row; Operation function: fixed temperature operation, timing function, auto stop; Additional function: Sensor deviation correction, temperature overshoot, self-tuning, internal parameter locking, power-off parameter memory; | |
| Timing Setting | 0~9999mins(with timing wait function) | |
| Alarm | Over-temperature Alarm, audible and visual alarm | |
| Shelves | 2pcs/adjustable, max. load 15kg/shelf, shelf space 29mm | |
| Consumption | 600W | |
| Power Supply | AC110/220V±10%, 50/60Hz | |
| Internal Size(W*D*H) | 260*260*260mm | |
| External Size(W*D*H) | 380*455*568mm | |
| Package Size(W*D*H) | 500*530*657mm | |
| Net/Gross Weight | 27/35kg | |
