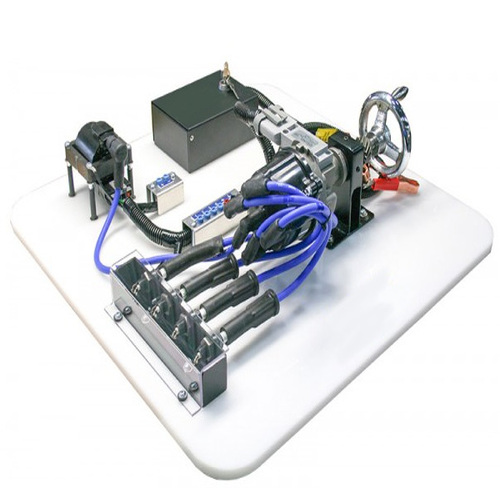

Distributor Ignition System Trainer is a training board used to teach the ignition system with distributor. The trainer is manufactured using brand new OEM components.

Working model designed to demonstrate the student’s operation of a typical electronic ignition system used in cars. The trainer consists of an Ignition coil distributor set of spark plugs & 12 V DC power supply. The components used are from actual automobile petrol engines In order to show the spark generation & firing order, the distributor is driven by a low-speed electric motor.

FEATURES

• This includes all the individual components of the system presented on a steel turret so that each component can be clearly identified.

• Demonstration model consisting of actual components used in Automobiles.
• Visualization of Spark & Firing order.
• Electric motor for driving the distributor.

SPECIFICATION

• All brand new components
• Distributor with hall effect sensor
• Ignition control module
• Ignition coil
• Spark plugs and plug wires
• Fault box with 4 faults
• Test points for diagnosis

DIMENSIONS AND WEIGHT

• L x W x H: 500x 600x 400mm
• Weight (approx.): 80kg
