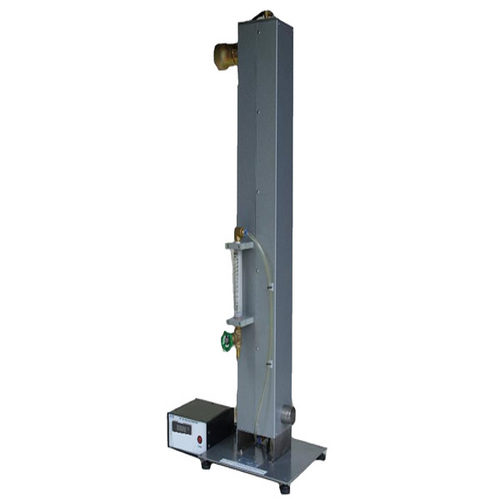

The exhaust gas calorimeter water heat exchange is to be used with a multi-cylinder engine. Small vertical finned tubes enclosed in an insulated stainless steel chamber. Exhaust gas from the engine can be connected to the calorimeter and flow around the finned tubes while cooling water flows inside the tubes. The chamber can be disassembled to clean the finned tubes. Instruments gear for the display of water flow rate, temperatures of exhaust, and water. Requires water supply
Determination of the thermal exhaust gas losses is essential when calculating an energy balance for internal combustion engines. Calorimetric measurement is an established method of doing this. It involves a largely complete and loss-free heat exchange between the exhaust gas and a cooling medium
FEATURES
- Counter flow heat exchanger for calorimetric analysis of exhaust gases from internal combustion engines
- Determination of the amount of heat contained in the exhaust gas from test engines
- Calorimeter consisting of finned pipe heat exchanger and insulated tank
- Instrumentation: 4 temperature sensors, flow meter
- Measuring amplifier with digital displays
- Connection between engine and calorimeter using exhaust gas hose
- Cold water connection and drain required
SPECIFICATION
- Calorimeter
- Insulated, stainless steel
Finned pipe heat exchanger
- Heat exchange area on exhaust gas side: 0,944m2
- Heat exchange area on water side: 0,141m2
- Measuring ranges
- Temperature:
- 2x 0…600°C (exhaust gas)
- 2x 0…200°C (cooling water)
- Flow rate: 0…160L/h
- 230V, 50Hz, 1 phase
DIMENSIONS AND WEIGHT
- L x W x H: 600x 600x 1300mm
- Weight (approx.): 103kg
