Description

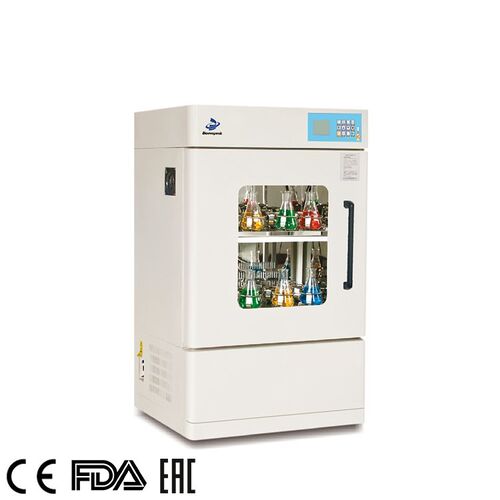

The vertical Constant Temperature Shaker incubator has a USB data storage system. Multi-stage speed, temperature, and time control system. It has an ultra-low speed running function and a unique dynamic balance design to ensure smooth running.
Features
1. Advanced USB data automatic record, download, and processing system. It has large storage and automatic recording & saving in the full test processing. The data could be directly downloaded by USB or automatically downloaded by wireless.
2. Automatic analyzing, listing table, charting, and printing on downloaded dates. It can trace back to the whole process of the experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
3. High quality servo motor. Speed control accurately, noiseless, durable, and high efficiency.
4. Multi-step rotation speed, temperature, and time control systems. Different rotational speed, temperature, and time can be set at one time; the operating model can be automatically converted during operation.
5. Slow accelerate and decelerate design. Slowly start and stop, preventing bacteria or cells to shear force that is too large and damaged.
6. Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
7. Automatic defrosting function. It makes shakers operate stably at low temperature for a long time.
8. High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
9. High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,
10. Unique drive system. It makes the machine run smoothly, stably, durably, and reliably.
11. LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.
12. Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.
13. The function of encrypted and locked operating parameters. It can avoid human errors.
14. Continuously running or timing. Shakers can display the set time and time remaining
15. Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
16. Clock and date can be displayed (touch screen only).
Specifications
| Model | ICB-S1102C | ICB-S2102C | ICB-S1102CD | ICB-S2102CD | |
| Control mode | P.I.D microprocessor chip | ||||
| Convection mode | Forced convection | ||||
| Shake mode | Convolution | ||||
| Display | LCD display | ||||
| Drive mode | Multidimensional drive | ||||
| System of USB data download and analysis | Yes | ||||
| Control system | Multiple programmable mode(Temp.,speed,time) | ||||
| Cyclotron frequency range(rpm/min) | 0；20-350(To do static culture) | ||||
| Cyclotron frequency sensitivity(rpm) | ±1 | ||||
| Orbit diameter(mm) | Φ26 | ||||
| Max. capacity | 100ml×60or 250ml×38or 500ml×22or 1000ml×16 | 100ml×84or 250ml×50or 500ml×32or 1000ml×18 | |||
| Standard capacity | 250ml×24 | 250ml×48 | |||
| Number of platforms | 500×360 | 485×485 | |||
| Timing range(h) | 0-9999h/min(Any time,continuous duty) | ||||
| Temperature range(℃） | Ambient+5°C~65°C（No refrigeration） | 4°C~65°C(Refrigeration） | Ambient+5°C~65°C（No refrigeration） | 4°C~65°C(Refrigeration） | |
| Temperature regulate sensitivity(℃） | ±0.1 | ||||
| Temperature uniformity(℃) | ±0.5（37℃） | ||||
| Temperature fluctuation(℃) | ≤0.1（37℃） | ||||
| Ultra-low speed start, Adjustable start speed，over-speed auto-protection，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower over-temperature，Automatically stop when opening the door (optional)，Function of lighting and UV disinfection | Two | ||||
| Outside dimension（W*D*H)（mm） | 700×580×1280 | 700×710×1320 | |||
| Capacity（L) | 160 | 218 | |||
| Power（W) | 600 | 850 | 600 | 850 | |
| Electricity | AC220±10% ,50Hz | ||||
| Net weight(kg) | 160 | 180 | 180 | 200 | |
| Gross weight(kg) | 210 | 220 | 230 | 240 | |
| Other functions | Ultra-low speed start, Adjustable start speed，over-speed auto-protection,Watch dog timer， Parameters Storage, Encryption parameters, Electricity incoming recovery， Refrigeration unit overload protection, Sound and light alarm when upper and lower over-temperature， Automatically stop when opening the door (optional), Function of lighting and UV disinfection | ||||
