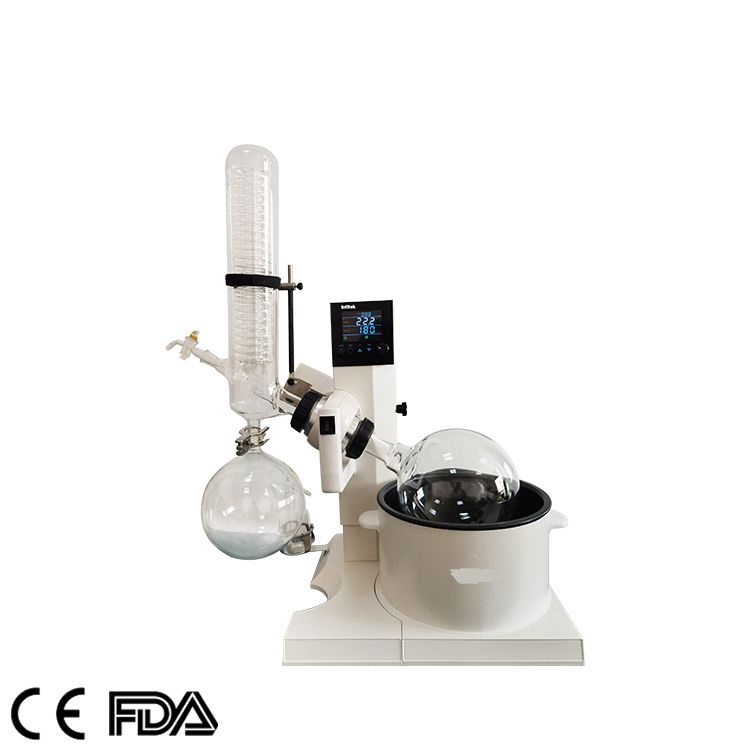

Rotary evaporator is an evaporation instrument in the laboratory. It consists of a motor, a distillation bottle, a heating pot, a condenser tube and other parts.
- Unattended mode with safe operation function, which is in automatic standby mode after the experiment
- Vacuum protection design which prevents vapor from vacuum pump, so the vacuum pump is more durable
- Sealing made up of imported PTFE with special technique
- DC rotating motor of 70w power starts steadily
- Vertical condenser with drip point design prevents backflow
- Intermittent positive and negative rotating function with timer function for drying process
- Oil and water heating bath with safe handle, whose temperature range is from room temperature to 210℃
- Anti-dry auto-lifting and automatic standby function
- Big color LCD screen with menu interface displaying several data; rotary switch easy to operate
- Both touch screen control and button press type automatic lifting function
- Special design of bottle pulling switch, which is easy to disassemble the evaporation flask(only REV-2000AX)
SPECIFICATIONS
| Model | REV-2000AX | REV-3000AX | REV-5000AX | ||
| Rotating Speed | Color LCD Screen; 0~310rpm | Color LCD Screen;0-310rpm (Evaporating flask≤ 3L)0-200rpm (Evaporating flask≤ 5L) | |||
| Evap. Capacity | Max.25ml/min (H2O) | Max.27ml/min (H2O） | Max.43ml/min (H2O） | ||
| Temp. range/precision | Microcomputer PID controller; Water Bath：RT.-99℃±0.5℃；Oil Bath：RT.-210℃±2℃ | ||||
| Bath Material | Integral Teflon compound heating bath with safe handle, which prevents from scald; the medium sized bath volume makes distillation fast. | ||||
| Bath Size | φ23*13cm(about 5.4L) | φ26*15cm(about 8L) | φ29*17cm(about 11L) | ||
| Positive&Negative Rotating | Intermittent positive and negative rotating function with timing function (0-60s) for drying process. | ||||
| Lift | Automatic balance lifting which can be controlled by either button-press or Color LCD screen; the lifting length is 150mm, with fixed safety distance of 60mm, which prevents crashing. | ||||
| Temp. Set | Rotating switch coding for temperature setting with big LCD screen display. | ||||
| Safety | Anti-dry prevention function which makes flask automatic lifting; instrument will stop at the set timing (0-999min); automatic lifting and standby alarm protection in abnormal or over temperature state. | ||||
| Heater Power | 1.5kW | 1.5kW | 1.5kW | ||
| Evaporating flask Volume | 0.25–2L | 0.25–3L | 0.25–5L | ||
| Sealing | Imported PTFE and special complex compounded with special technique, which ensures good sealing and improves the anti-corrosion and durability property. | ||||
| Condenser | Vertical 3-layered coil condenser with big condensation area, equipped with drip point and backflow prevention, which effectively increases the evaporation efficiency. | ||||
| Condense Area | 0.18㎡ | 0.21㎡ | 0.31㎡ | ||
| Environment Temp. | 5℃~40℃ | ||||
| IP（Ingress Protection） | IP42 | ||||
| Factory Configuration | 29# grinding mouth integrated rotating shaft *1；Sample Bottle: 29# Eggplant bottle 1L*1；Recycling Bottle: S35 ball grinding mouth collection bottle 1L*1 | Flange interface to 29# grinding interface*1；Sample Bottle: 3L flange mouth round bottom bottle *1,29# eggplant bottle 1L*1；Recycling Bottle:S35 ball grinding mouth collection bottle 2L*1 | Flange interface to 29# grinding mouth interface *1;Sample Bottle: F50 flange mouth round bottom bottle 5L*1,29# eggplant bottle 1L*1;Recycling Bottle: S35 ball grinding mouth collection bottle 3L*1 | ||
| Electricity | AC220V/50Hz | ||||
| Instrument Dimension(W*D*H)(mm) | 660*420*830 | 700*430*860 | 740*440*960 | ||
| Package Dimension(W*D*H)(mm) | 740*670*530 | 710*645*790 | 810*710*890 | ||
| G.W.(kg) | 30 | 35 | 49 | ||
| Optional: Vacuum controller for precise vacuum control. Warning: The protection cap is only for water bath experiment. Please do not use in oil bath experiment. | |||||
