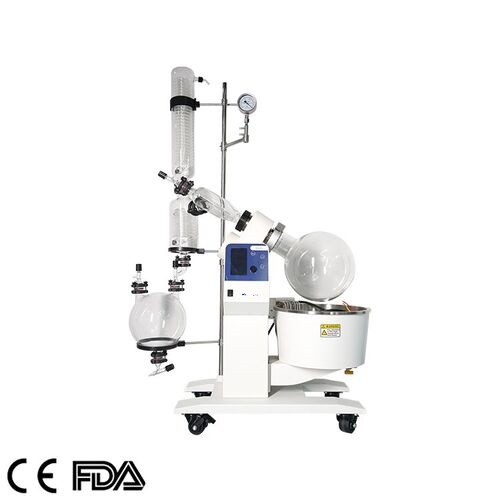

Description
- Large LCD digital display with heatingtemperature, rotation speed, clockwise and Anti-clockwise, time information.
- One-click automatic motor lifting (stroke180mm), smooth and silent.
- Water/oil heating bath with widetemperature range from room temp. to 180°C.
- Speed range from 10 to 150rpm, andinterval operation in clockwise and anticlockwise directions for drying process.
- Three-layer high-efficiency condensing tubewith large condensation area and strong evaporation capacity, ensuring efficient sample recovery.
- Patented connector for evaporating flask easy & quick installation.
- PTFE double sealing ring with excellentsealing performance.
- A switching valve for continuous collectionwithout compromising the system vacuum and solvent distillation.
Specifications
| Model | REV200-P | |
| Performance | Temperature range | Room temp. -180℃ (both water and oil) |
| Control accuracy | Water: ±1℃ Oil: ±3℃ | |
| Rotation speed | 10rpm~150rpm | |
| Evaporation capacity | Max. 4.0L/h (water vapor volume) | |
| Ultimate vacuum | < 2.6 hPa | |
| function | Temperature control method | Micro processer PID control |
| Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) | |
| Stroke displacement | Automatic 180mm | |
| Safely features | Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection | |
| constitute | Sample flask | Round flask 20L |
| Receiving flask | Round flask 10L with drain value | |
| Condenser | Two-section vertical triple serpentine condenser, cooling surface 1.2m2 | |
| specifications | Heating bath size | Φ450mm×240mm |
| Takeover caliber | Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm | |
| Dimension (D×W×H) | 1160mm×600mm×1860mm | |
| Power supply | 220V/4600W/50Hz/60Hz | |
