Description

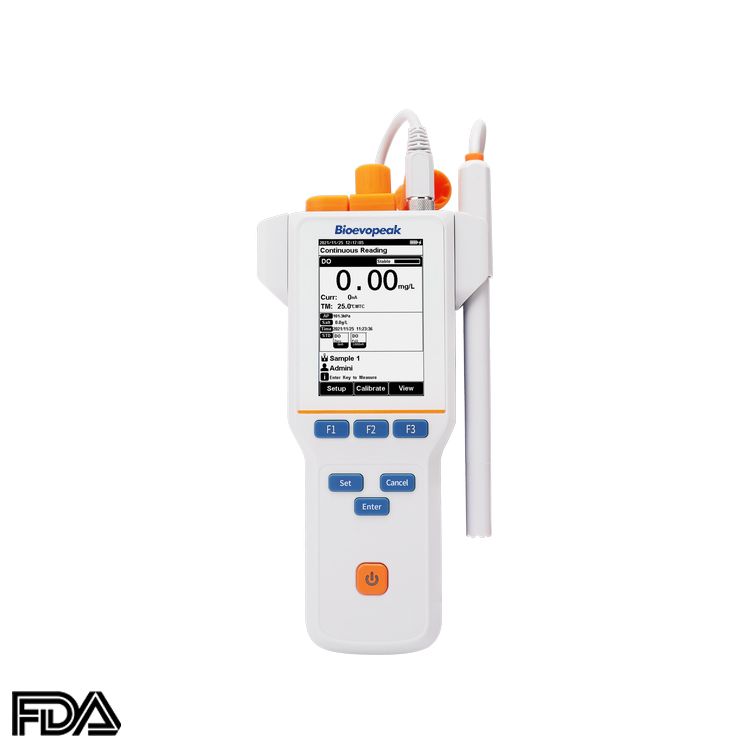

DO-P310F Portable Dissolved Oxygen Meter has automatic temperature compensation function, as well as air pressure and salinity compensation functions, which are suitable for various fields.
Advantages
- 5-inch LCD display screen
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data capacity of up to 500 sets for each parameter (GLP-compliant).
- Support for USB communication.
- Auto-power off feature effectively extends the battery service life.
- Reset feature automatically resumes all settings back to factory default options.
- IP65 waterproof.
- Support for air-saturated water or zero oxygen calibration.
- Auto barometric pressure compensation
- Manual salinity factor correction
- Selectable pressure unit, including kPa, mbar, Torr, Atm.
Specifications
| Model | DO-P310F | |
| Parameters | DO/Temp(DO Saturation). | |
| Dissolved Oxygen Concentration | Sensor Type | Polarographic |
| Range | 0.00 to 50.00 mg/L | |
| Resolution | 0.01mg/L | |
| Accuracy | ±0.1mg/L | |
| Calibration Points | Air-saturated water or zero point | |
| Barometric Compensation | Yes | |
| Manual Salinity Factor Correction | Yes | |
| DO Saturation | Range | (0.0 to 300.0)% |
| Resolution | 0.10% | |
| Accuracy | ±2.0% | |
| Temperature | Range | -5 to 110 ºC, 23 to 230 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.2 | |
| Measurement | Reading Mode | Auto-Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 1000 Groups |
| GLP Features | Yes | |
| Inputs | DO with Temp. Probe | 4-pin aviation connector |
| Outputs | USB | PC, printer |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600sec., off | |
| IP Rating | IP65 | |
| Date and Time | Yes | |
| General | Electricity | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 80× 255 × 35 mm | |
| Weight | 400g | |
