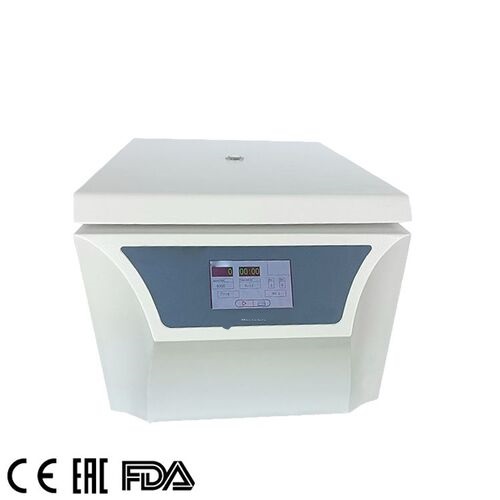

Low Speed Centrifuge, Benchtop, CFG-5BL
ax. Speed: 6000rpm/m
Max. RCF: 3800×g
Max.Capacity: 4×500mL

Description

It is suitable for separating biological, chemical, pharmaceutical, biological products, and other liquids.

Advantages

1. 5-inch high-definition touch screen, easy to operate and intuitive display;

2. Automatically identify 4different rotors to eliminate potential safety hazards caused by user misoperation;

3. It has 9 files of acceleration and10 files of deceleration level, which can effectively prevent secondary suspension and have an excellent centrifugal effect;

4. 15 groups of programs can be stored for users to use;

5. Special air duct, the continuous working temperature rise is less than 10℃ at room temperature of 26-28℃;

6. AC variable frequency motor, high-speed control precision;

7. Unique two-stage shock absorption; large-capacity rotor has little vibration during operation, runs smoothly, and increases the service life of the instrument;

8. There are various protections such as overspeed, door protection, imbalance protection, etc. to ensure the safety of humans and machines;

Specifications

ModelCFG-5BL
Max. Speed6000rpm/m
Max. RCF3800×g
Max.Capacity4×500mL
MotorAC frequency conversion motor
Speed Accuracy±30r/min
Time SettingTimed centrifugation:1min~99 min59secContinuous centrifugation : Hold
Power SupplyAC220±22V 50/60Hz 10A
Noise≤60dB(A)
Dimensions(L×D×H)458mm×620mm×380mm
Net Weight55kg

Rotor

NO.Max. speed rpm/mMax. RCF(xg)Rotor TypeCapacityDimension of  Test Tube (mm)
NO.14000rpm/m2810×gLevel Rotor4x2x100ml(It can be equipped with adapter)Φ37.5×123
4000rpm/m2810×g4x100ml(It can be equipped with adapter)Φ37.5×123
4000rpm/m2810×g4x2x50mlΦ29×107
4000rpm/m2810×g4x50mlΦ29×107
4000rpm/m2810×g4x8x15mlΦ17×118
4x6x15mlΦ17×118
4x4x15mlΦ17×118
NO.24200r/min3500xg4x250mlΦ62×110
NO.34000r/min3040×g4×500mlΦ80×137
NO.44000r/min2000×gMicroplate Rotor2×2×96 well plateMicroplate
