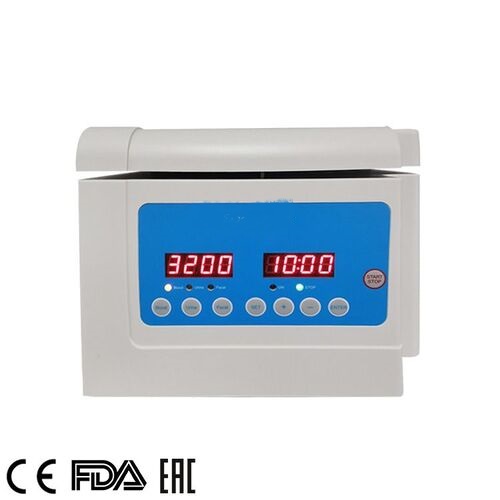

Clinical Centrifuge, Low Speed, CFG-4D/4D-E
Clinical Centrifuge, Low Speed, CFG-4D/4D-E

Description

CFG-4D Features

  • Max. speed 4000rpm.
  • Rotor speed can be set in RPM/RCF, with 3 programs' storage capacity for routine applications.
  • Max. capacity 50ml×4, Accomo dating different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor.
  • Automatic internal diagnosis and self-detection.
  • Maintenance-free brushless DC motor.

CFG-4D-E Features

  • Speed range of 300-4000rpm.
  • 3 programs storage capacity for routine applications
  • Automatic internal diagnosis.
  • Maintenance-free brushless DC motor.

Specifications

SpecificationsCFG-4DCFG-4D-E
Speed range500-4000rpm increment: 100rpm300-4000rpm increment: 100rpm
Max. RCF2500×g1900×g
Speed accuracy±100rpm±100rpm
RotorSwing6×15ml
Swing4×50ml
Angle 24×15 ml,
Angle 12×10ml/8×15ml		Angel 8×15ml(Default),
Angel 10ml×12
Run time1-99min, HOLD1-99min, HOLD
MotorBrushless DC motorBrushless DC motor
DisplayLCDLED
ProgramBlood: 3200rpm,10min. Urine: 1800rpm,5min. Faecal: 1300rpm,10min.Blood: 3200rpm, 10min Urine: 1800rpm,5min Faecal: 1300rpm, 10min
Safety DeviceAutomatic internal diagnosisAutomatic internal diagnosis
Acceleration/deceleration3↑4↓steps25s↑35s↓
PowerSingle phase, 100V-240V, 50Hz/60HzSingle phase, 100V-240V, 50Hz/60Hz
Dimension(W×D×H)364×440×268mm286×367×227mm
Weight14.5kg9.2kg
Noise≤62dB(A)≤60dB(A)
Cat. No.19400100for CFG-4DMax. Speed: 4000rpmRotor capacity: 50ml×4Rotor material： Aluminum alloyDefault adaptor: CAT. NO. 19500024, CAT. NO. 19500022
Cat. No.19400100for CFG-4DMax. Speed: 4000rpmRotor capacity: 50ml×4Rotor material： Aluminum alloyDefault adaptor: CAT. NO. 19500024， CAT. NO. 19500022
Cat. No.19400101for CFG-4DMax. speed: 4000rpmRotor capacity: 15ml×24Rotor material： High strength plasticDefault adaptor: CAT. NO. 19500021， CAT. NO. 19500022
Cat. No.19400084for CFG-4D/CFG-4D-EMax. Speed: 4000rpmRotor capacity:15ml×8Rotor material: High strength plasticDefault adaptor: CAT. NO. 19500021
Cat. No.19400101for CFG-4DMax. speed: 4000rpmRotor capacity: 15ml×24Rotor material: High strength plasticDefault adaptor: CAT. NO. 19500021， CAT. NO. 19500022

Available adapters

Cat. No.1950002115ml adapter for 17×120mmcentrifuge tube, 13/16×100mmblood collection tube 24 pcs/pk, for CAT. NO. 19400082, CAT. NO. 19400101, CAT. NO. 19400084
Cat. No.195000225ml adapter, Adapted to 13×75mmblood collection tube 24 pcs/pack, for CAT. NO. 19400100, CAT. NO. 19400082, CAT. NO. 19400101
Cat. No.195000225ml adapter, Adapted to 13×75mmblood collection tube 24 pcs/pack, for CAT. NO. 19400100, CAT. NO. 19400082, CAT. NO. 19400101
Cat. No.19500023(Optional)1.5/2ml Cryogenic Vials/ centrifuge tube adapter, 24 pcs/pack, for CAT. NO. 19400100,CAT. NO. 19400082, CAT. NO. 19400101, CAT. NO. 19200921, A6-50P
Centrifuge modelRotorCapacityHole Diameter (mm)Hole Depth (mm)Max. Tube Height (mm)Max. Speed (rpm)
CFG-4DCAT. NO. 1940008215ml×62297.7120.64000
CAT. NO. 1940010050ml×429.487.81254000
CAT. NO. 1940010115ml×242297.7120.64000
CFG-4D&CFG-4D-ECAT. NO. 1940008415mlx822.690.8120.34000
CAT. NO. 1920092115ml×8/10ml×1218.683.41234000
