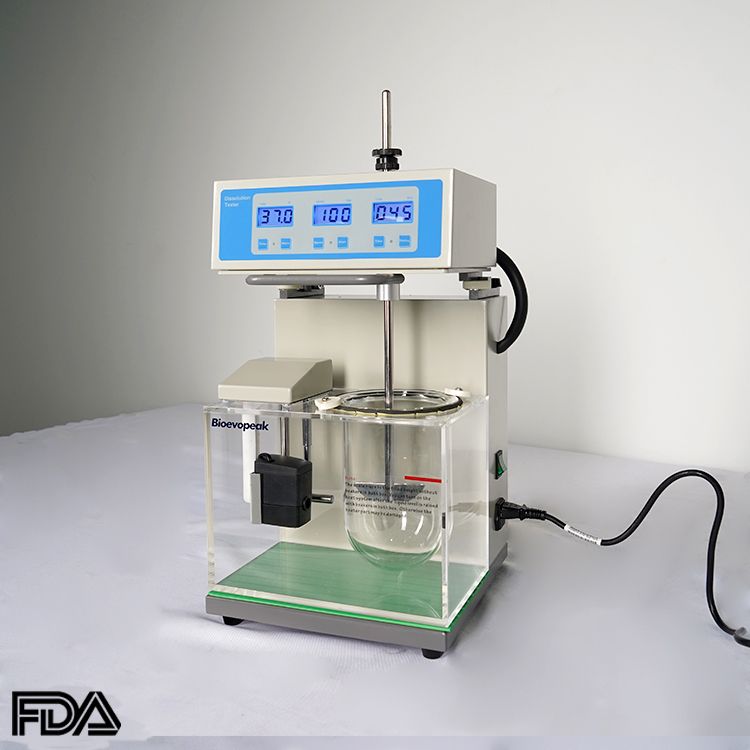

Dissolution Tester, DIST-1E
1 set of basket
Speed range: (20~200)rpm
Speed accuracy: ±2rpm
Temperature range: ambient to +45.0℃

Description

DIST series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Applicable standards:

·  National standard( Chinese codex ) /2015 ·  Industry standard(Dissolution tester )JB/T 20105-2007

Features:

·  It has one vessels and one poles arranged on one line.

·  The head part of the instrument can be artificially turned over smoothly and flexibly.

·  The basket units and paddle units are made of imported stainless steel (SUS316L).

·  The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.

·  A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.

·  It can be operated conveniently by keystroke. The measurement result is displayed by LCD. The preset and real data can be displayed alternately in time.

·  Automation: auto-test, auto-diagnose, auto-alarm.

Dissolution-Tester

SPECIFICATIONS

ModelDIST-1E
Speed range(20~200)rpm
Speed accuracy±2rpm
Temperature rangeambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points(5~900)min
Time accuracy ±0.5mm
Paddle radial run-out±0.5mm
Basket radial run-out±1.0mm
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension(260*300*480)mm³
