DESCRIPTION
It is widely used in agriculture, medicine, food hygiene, biopharmaceuticals, bioengineering, cell biology and biochemistry, etc. It is suitable for the separation and purification of microbial cells, cell proteins, mold and immunity.
Advantages
1. 5-inch high-definition touch screen, easy to operate and intuitive display;
2. Automatically identify 9 different rotors to eliminate potential safety hazards caused by user misoperation;
3. It has 9 files of acceleration and 10 files of deceleration level, which can effectively prevent secondary suspension and have a good centrifugal effect.
4. 15 groups of programs can be stored for users to use;
5. AC variable frequency motor, high-speed control precision, imported environmental protection compressor;
6. There are various protections such as overspeed, door protection, imbalance protection, etc. to ensure the safety of humans and machines;
7. Free switching of speed and RCF；
8. Low noise:the noise is close to silent at the highest speed;
9. Sealed rotor for effective protection against aerosol.
SPECIFICATIONS

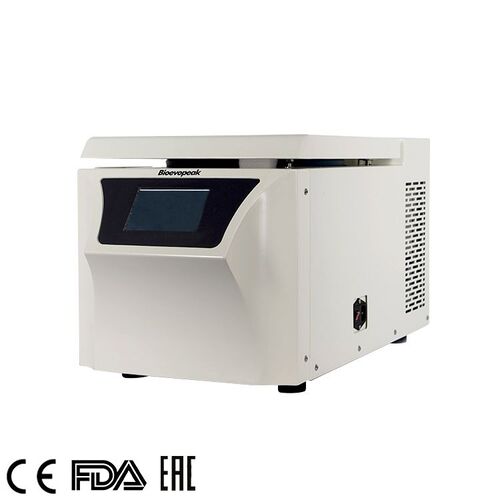

| Model | CFGR-B18B |
| Max. Speed | 18500r/min |
| Max. RCF | 23800×g |
| Max. Capacity | 4×100mL |
| Motor | AC frequency conversion motor |
| Speed Accuracy | ±30r/min |
| Time Setting | Timed centrifugation: 1min～99 min59sec; Continuous centrifugation: Hold |
| Temperature Setting | -10℃～+40℃ |
| Temperature Accuracy | ±1.0℃ |
| Electricity | AC220±22V 50/60Hz 16A |
| Noise | < 55dB(A) |
| Operation interface | Default English system; other language systems can be customized, please inquire for details |
| The service life of the touchscreen | About 50,000 times, ten years |
| Dimensions(L×D×H) | 350×662×352(mm) |
| Net Weight | 50kg |
Rotor
| NO. | Max speed rmp/m | Max RCF(xg) | Rotor Type | Capacity |
| NO.1 | 18500r/min | 23820×g | Angle Rotor | 12×1.5/2.2mL |
| NO.2 | 15000r/min | 21530×g | 24×1.5/2mL | |
| NO.3 | 13000r/min | 16400×g | 48×0.5ml | |
| NO.4 | 12000r/min | 25358×g | 8×15ml | |
| NO.5 | 13500r/min | 12830×g | 12×5ml | |
| NO.6 | 12500r/min | 16060×g | 12x10ml | |
| NO.7 | 12000r/min | 17930×g | 6×50ml (Round/ Sharp) | |
| NO.8 | 10000r/min | 10740×g | 4×100ml | |
| NO.9 | 4000r/min | 2000×g | Microplate Rotor | 2x2x48 well plate |
