SPECIFICATIONS

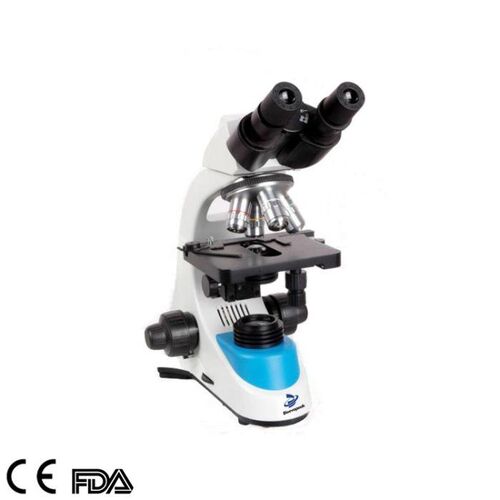

| Model | MSC-B208(Siedentopf) |
| Viewing Head | Seidentopf Binocular Viewing Head at 30°IncIined Interpupillary (55-75mm) |
| Eyepiece | Wide Field eyepiece WF10X18mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective 4X,10X,40X,100X |
| Stage | Double Layers Mechanical Stage 140X135mm/ 75X50mm |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm |
| Illumination | S-LED Illumination, Brightness Adjustable |
| Halogen Lamp 100V-240V/ 6V20W | |
| Plan-concave Mirror | |
| Filter | White Filter |
| Package | Carton |
| Package Size L*W*H (mm) | 360*260*470 |
| Gross Weight (kg) | 7 |
