Description
This series of centrifuges is an advanced intelligent instrument. As a piece of ideal equipment for separation and concentration, it is widely used in the fields of biochemistry, medical care, food safety, life science, farming, stock breeding, blood bank, biological pharmacy, and so on. It can be a high-technology replacement product for the imported one.
Features
- Driving: Driven by brushless DC motor. It contains a soft brake to avoid resuspension for samples.
- Speed Control: The acceleration time to the maximum rotational speed is approx. 14 s; The deceleration time from maximum rotational speed is approx 15 s.
- Display: Controlled by microcomputer with touching the pad and visual digital display.
- Cooling: Totally CFC-free compressor with controlling valve.
- Rotor: With standby cooling, the rotor remains at the required temperature. Rotors are autoclavable at 121℃ for 20 minutes.
- Body Structure: Premium steel shell; stainless steel chamber.
- Safety Protection: It contains various safety protections including lid locking and holding during rotor on, over speed, and over temp. unbalance. The electronic lock ensures its safety and reliability during running.
Specifications

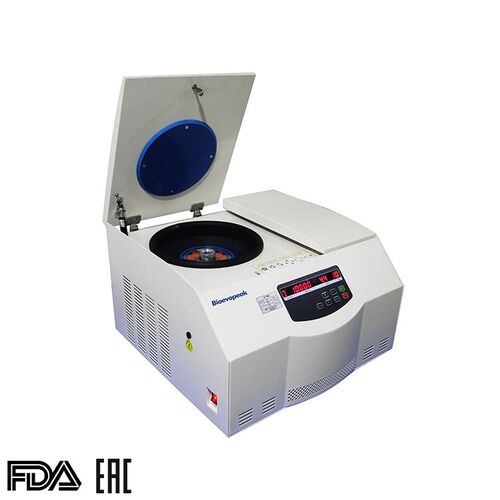

| Model | CFGR-16DR |
| Max. Speed | 16000r/min |
| Max. RCF | 17800×g |
| Max Capacity | 6×50ml |
| No.6 Angle Rotor | 12×1.5/2.0ml(16000r/min)RFC:17800×g |
| No.10 Angle Rotor | 18×0.5ml(16000r/min)RFC17800×g |
| No.13 Angle Rotor | 24×1.5/2.0ml(13000r/min)RFC:16060×g |
| No.14 Angle Rotor | 10×5ml(13000r/min)RFC:11500×g |
| No.19 Angle Rotor | 12×10ml(12000r/min)RFC:14800×g |
| No.22 Angle Rotor | 6×50ml(11000r/min)RFC:12460×g |
| No.25 Angle Rotor | 48×0.5ml(13000r/min)RFC:14740×g |
| No.55 Swinging Rotor | 2×48well(3000r/min)RFC:1400×g |
| Speed Accuracy | ±50r/min |
| Timer Range | LED 1～99min/LCD 1s～99h59min59s |
| Temp. Range | -20℃～40℃ |
| Temp. Accuracy | ±1℃ |
| Compressor | High-performance compressor with CFC-free refrigerant |
| Sound Emission | ≤65dB |
| Motor | Brushless DC motor and microcomputer controlled |
| Electricity | AC 220V 50Hz 15A |
| Dimension (W×D×H) | 600×580×370mm |
| Weight | 95kg |
