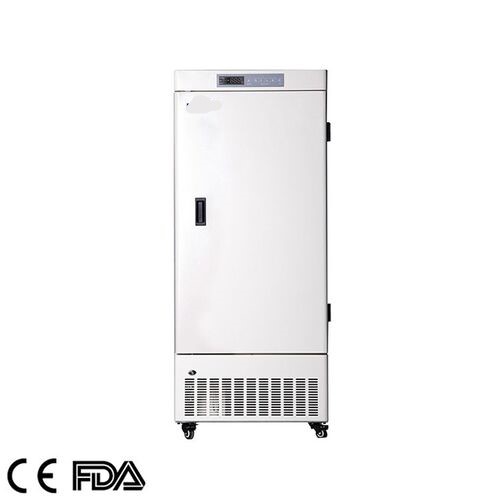

-25℃ Vertical Freezer, LF25-E Series
1. Capacity: (L/cu.ft):268/9.46,328/11.58\
2. Temperature range(℃):-10℃~-25℃
3. Advanced Cooling System: Reasonable refrigeration layout, more stable refrigerant, High cooling efficiency and fast cooling speed
4. Stable and high precise temperature control: Accuracy up to 0.1℃;Can run smoothly at the lowest temperature for a long time
5. Excellent energy saving: independent inner door to avoid more air conditioning leakage
6. Convenient after-sales service: 2 years warranty

Key Features
Independent inner door to avoid more cooling leakage, and provide more stable inside temperature performance.
Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
Lockable caster design for customer to move as needed.
Wide voltage tolerance design with applicable voltage range of 187~242V/AC.

Safety
Multiple malfunction alarms including high and low temperature, sensor error, power off, temperature controller malfunction, door ajar.
Two types of alarm indications: audible buzzing and visible flashing light.
Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from damage.
Controller password protect function to avoid change running parameter randomly.

Reliability
Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
High density CFC-free urethane foam insulation for rigidity and stable storage temperature.
Microprocessor control, digital display adjustable temperature range: -10℃~-25℃.
LED digital display for clear observation.

Specifications

ModelLF25-270ELF25-330E
SpecificationsShelf (drawer)Shelves/3Shelves/4
Cooling methodDirect coolingDirect cooling
DefrostManualManual
RefrigerantR290R290
Power consumption (kWh/24h)33
Noise(db)4646
Ambient temperature(℃)10~32℃10~32℃
Temperature range(℃)·-10~-25℃·-10~-25℃
Cooling systemCompressor brand/QTYCUBIGELN/1CUBIGELN/1
SensorNTCNTC
Temperature controllerMicroprocessorMicroprocessor
DisplayDigital displayDigital display
PowerVoltage/frequency(V/Hz)220/50Hz220/50Hz
Power(W)180W180W
Current(A)1.4A1.4A
MaterialInside materialColor sprayed steelColor sprayed steel
Outside materialColor sprayed steelColor sprayed steel
InsulationPURFPURF
SizeCapacity(L/cu.ft)268/9.46328/11.58
NW./GW.(kg)93.5/113.5113/131
Exterior size(W×D×H)(mm)673×676×1630673×676×1886
Interior size(W×D×H)(mm)508×455*1137508×455×1393
Package size(W×D×H)(mm)770×770×1804770×770×2040
CBM1.011.16
20GP/40GP/40HQ21/45/4521/48 /48
AlarmHigh/low temperatureYY
Power offYY
Sensor malfunctionYY
Ambient temperature(℃)//
Abnormal voltage//
Temperature controller malfunctionYY
Door ajarYY
Power failure backup system(alarm)8H8H
AccessoriesCasterYY
Test hole1/25MM1/25MM
USB port//
Temperature Data loggerOptionalOptional
Remote alarmYY
