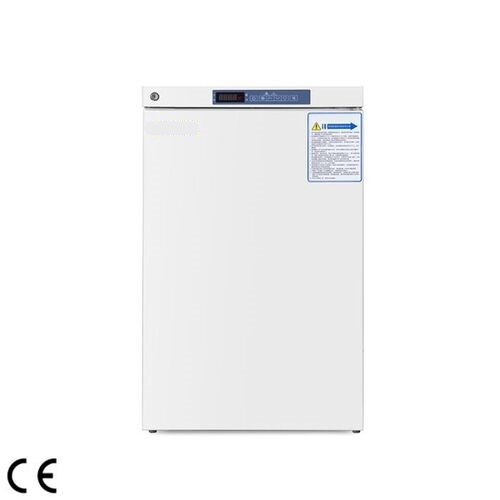

-25℃ Vertical Freezer, LF25-100
1. Capacity: (L/cu.ft):100/3.53
2. Temperature range(℃):-25~-10℃
3. Advanced Cooling System: Reasonable refrigeration layout, more stable refrigerant, High cooling efficiency and fast cooling speed
4. Stable and high precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
5. Convenient after-sales service: 2 years warranty

Description

Key Features
1.Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.
2.Lockable caster design for customer to move as needed.
3.Wide voltage tolerance design with applicable voltage range of 187~242V/AC.

Safety
1.Multiple malfunction alarms including high and low temperature, sensor error, power off, temperature controller malfunction, door ajar.
2.Two types of alarm indications: audible buzzing and visible flashing light.
3.Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from damage.
4.Controller password protect function to avoid change running parameter randomly.

Reliability
1.Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.
2.High density CFC-free urethane foam insulation for rigidity and stable storage temperature.
3.Microprocessor control, digital display adjustable temperature range: -25℃~-10℃.
4.LED digital display for clear observation.

Specifications

ModelLF25-100
SpecificationsShelf (drawer)Shelves and drawers
Cooling methodDirect cooling
DefrostManual
RefrigerantR600a
Power consumption (kWh/24h)2.2
Noise(db)50
Ambient temperature(℃)10~32℃
Temperature range(℃)-10~25℃
Cooling systemCompressor brand/QTYKY55C45G
SensorNTC
Temperature controllerMicroprocessor
DisplayDigital display
PowerVoltage/frequency(V/Hz)220/50Hz
Power(W)150W
Current(A)0.9A
MaterialInside materialHIPS
Outside materialColor sprayed steel
InsulationPURF
SizeCapacity(L/cu.ft)100/3.53
NW./GW.(kg)40kg/43kg
Exterior size(W×D×H)(mm)540*553*877
Interior size(W×D×H)(mm)410×410×670
Package size(W×D×H)(mm)590×590×900
CBM0.31
20GP/40GP/40HQ54/120/120
AlarmHigh/low temperatureY
Power offY
Sensor malfunctionY
Ambient temperature(℃)/
Abnormal voltage/
Temperature controller malfunctionY
Door ajarY
Power failure backup system(alarm)8H
AccessoriesCaster/
Test hole/
USB port/
Data loggerOptional
Remote alarm/
