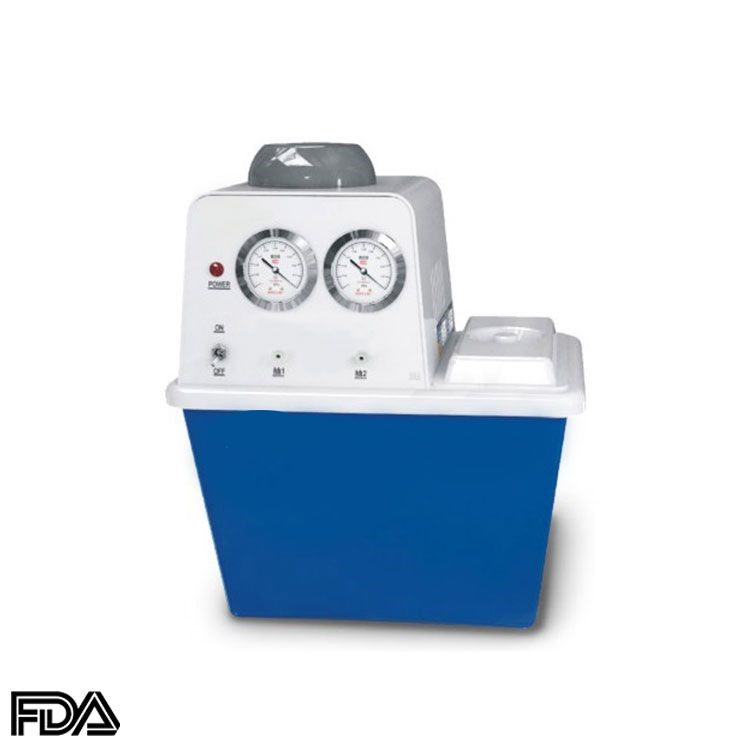

Water Circulating Vacuum Pump takes circulating water as working fluid to create negative pressure by fluid jet. It can provide negative pressure condition for the processes of evaporation, distillation, crystallization, drying, sublimation, pressure-reducing filtration and so on, particularly be suitable for labs and small scale test of industries such as universities and colleges, scientific research institutes, chemical industry, pharmacy, biochemistry, foodstuff, pesticide, agricultural engineering, biological engineering.
1. Spray Paint Teflon (PTFE) plus FV Rubber on the ejector and suction nozzle. Hose is made of fluorine rubber.
2. Better corrosion resistance and more reliability and longer service life.
Specifications
| Model | VACP-WC3, VACP-WC3G |
| Power (W) | 180 |
| Power Supply | 110V~, 60Hz or 220-240V~, 50/60Hz |
| Flow (L/min) | 80 |
| Lift (m) | 10 |
| Ultimate Vacuum (MPa) | 0.098 (2kPa) |
| Single Tap Air Suction Amount | 10L/min |
| Number of Tap | 2 |
| Safety | Check valve, over-current protection |
| Water Tank Capacity (L) | 15 |
| Water Tank Material | PP |
| Dimensions (mm) | 385W×280D×420H |
| Net Weight (kg) | 11 |
