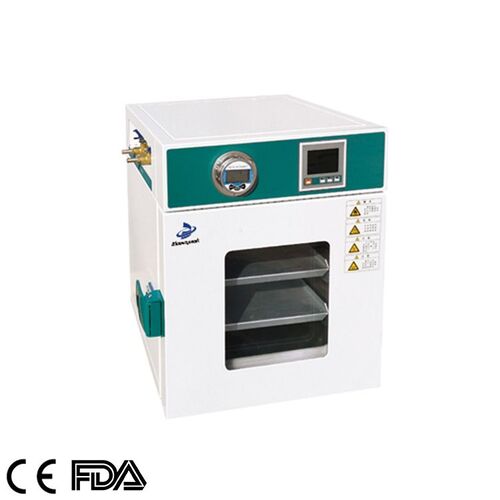

Vacuum Oven, DOV-25S, DOV-55S, DOV-90S
Capacity: 24L,52L,91L
Vacuum Degree Range: <133Pa> Temp. Range: RT+10-250℃

Description

Vacuum Oven

Features
1.4-sides Heating method, Temperature conduction by shelves, more efficiency.
2. inflatable port, once-forming thermostability silica gel Sealant strip, with good tightness.
3. Double Observation glass window, inner is explosion-proof glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
5. LCD controller, multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm2 five pressure units optional switch.

Specifications

ModelDOV-25SDOV-55SDOV-90S
Capacity24L52L91L
Heating ModeHigh-Quality stainless steel sheet
FunctionTemp. RangeRT+10-250℃
Vacuum Degree Range<133Pa
Temp. Resolution Ratio0.1℃
Temp. Motion±1℃
Heating-Up Time80 min100 min120 min
StructureInner ChamberBullet proof glass, acrylic exterior protection
Outer Shellcold rolling steel electrostatic spraying exterior
Insulation LayerAluminium silicate fibre
Heaterstainless steel electric heating tube
Observation WindowFixed temperature operation, timing function, auto stop
Nozzle Diameter10mm
ControllerTemp. Control ModeTwo temperature section
single shelf independent temperature control
Temp. Setting ModeTouch button setting
Timer0-9999 minutes (with timing wait function)
Operation FunctionNumber of Shelves
Additional FunctionSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory
Temp. SensorPT100
Safety DeviceOver-temperature temperature sound-light alarm
AccessoryShelf2
Shelf Frame4
SpecificationLoad per Rack15kg
Shelf Space100mm140mm185mm
Number of Shelf2
Consumption800W1400W2000W
Internal Size(W*D*H)300*300*270mm450*450*450mm450*450*450mm
External Size(W*D*H)480*480*606mm670*645*906mm670*645*906mm
Package Size(W*D*H)590*550*750mm840*785*1062mm840*785*1062mm
Power Supply(50/60HZ)AC110/220V±10%, 50/60Hz/3.6AAC110/220V±10%, 50/60Hz/6.3AAC110/220V±10%, 50/60Hz/9.1A
Current Rating
Net/Gross Weight42/52kg67/92kg82/105kg
Optional Accessoriessilica gel connecting pipe, vacuum pump
