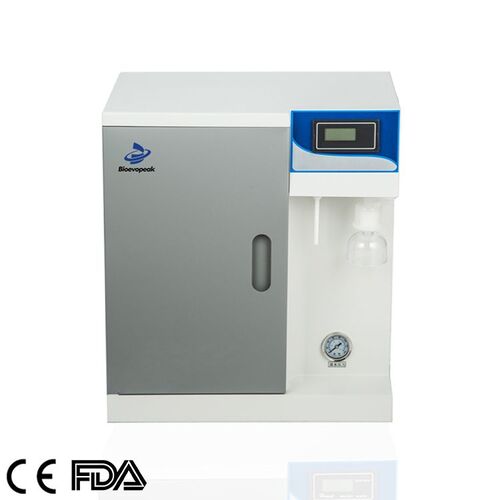

Ultrapure Water Purifier, LWP-S3-2D series
Water quality on-line monitoring system.
Simple and quick replacement of filter element
Equipped with portable TDS pen
Double electric water intake,two kinds of water
  1. Suitable for national water quality, the chassis adopts plastic spraying process
  2. The filter element of the system adopts injection molding technology and is built in the chassis
  3. Korean-style fast insert filter column replacement maintenance convenient replacement
  4. Electrical appliances and waterways are completely separated to avoid circuit failures caused by moisture and water leakage.
  5. Water quality on-line monitoring system, which can measure the quality of produced water in real time;
  6. Automatic RO film anti-scale washing procedure, automatic shutdown when the tap water is cut off, automatic shutdown when the tap water is cut off, automatic replenishment of the water storage bucket, automatic shutdown when the water storage bucket is full.
  7. Pipelines are NSF certified, with water quality and quantity upgrade function.
  8. Equipped with portable TDS pen, you can test TDS content, conductivity, water temperature anytime and anywhere.
  9. Double electric water intake, two kinds of water, ready to use.
  10. Front and back door design, simple and quick replacement of filter element, the whole process without using any tools, easy to complete the replacement of filter element.

Application

Application Field
Physicochemical analytical typeAll kinds of physical and chemical testing, biochemical analysis, blood examination, microanalysis, flushing special, HPLC, IC, GC, analysis experiment
Ultra low organic typeAtomic absorption/emission spectrometry, mass spectrometry, TOC detection, environmental monitoring, biochip development, trace organic matter analysis
Ultralow element typeHigh sensitivity ICP/MS, PCR, PPT level analysis, isotope analysis, molecular biology, life science, CDC, drug control institute, quality inspection institute, university scientific research and other standard laboratories and a variety of high-end precision instrument water
comprehensiveMolecular biology, Life sciences, gene research, cell culture, amino acid analysis, protein purification, toxicology, drug development, medical testing

Water inlet= water outletwater outlet120LPHnormal 90 LPH

Case ACase BCase C
Water inlet= DI water outlet + UP water outletWater inlet= UP water outletWater inlet= DI water outlet

Specifications

LWP-S3-2D series
TypePhysicochemicalLow endotoxinLow TOCComprehensive
ModelLWP-S3-2DELWP-S3-2DFLWP-S3-2DVLWP-S3-2DVF
Water requirementsPure/distilled water enters the water
DI water indicators
Resistivity10 to 16 MΩ. cm @ 25℃
Electrical conductivity< 0.1 us/cm
UP water indicators
Resistivity (25℃)18.2 MΩ. cm @ 25℃
Heavy metal ion< 0.01 PPb
Total organic carbon (TOC) *<10 PPb<3 PPb
Bacteria< 0.01 cfu/ml
Pyrogen (endotoxin)N/A< 0.001 Eu/mlN/A< 0.001 Eu/ml
Particulate matter (> 0.1 microns)<1/ml
Ribonuclease (RNases)N/A<1pg/mlN/A<1pg/ml
DeoxyribonucleasesN/A<5pg/mlN/A<5pg/ml
Dimensions
(L×W×H)
41*27*50cm
Weight30Kg31Kg31Kg32Kg
Electricity100-240V, 50/60Hz, 48-72W
System configurationHost (including 1 set of purification column)+TDS pen + accessory bag
