Description

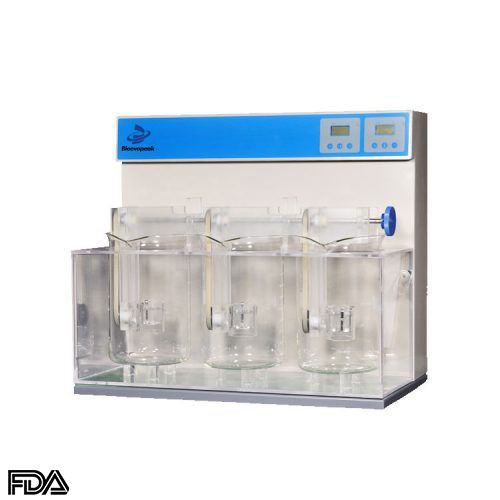

SMTP-1 Thawing Time Limit Tester is used to inspect the condition of thawing, softening or dissolution of solid preparations such as suppositories or vaginal tablets under the prescribed conditions. It’s a mechatronic product which is designed and produced in accordance with the requirements of Chinese Pharmacopoeia (Edition 2015) on “suppository thawing time limit inspection methods”.
Main features
- Three-beaker, three-path, three-path synchronization, manual overturn.
- Transparent sleeve, stainless steel net racks
- Imported stainless steel is adopted for net racks.
- Automatic temperature control, high temperature control precision
- Magnetic water pump circulating water flow uniform heat system is adopted, and bath temperature is uniform.
- Automatic temperature control and automatic time keeping.
Specifications
| Model | SMTP-1 |
| Number of sleeve racks | 3 sets |
| Size of transparent sleeve | height 60mm; inner diameter 52mm |
| stainless steel net rack | 2 sheets, diameter of 50mm, with 39 holes of 4mm. |
| Timing range | (10~900)min |
| Timing precision | ±0.5min |
| Temperature control range | (20~45)ºC |
| Temperature control precision | ±0.5ºC |
| Volume of beaker | 5L(3PCS) |
| Power supply | 220V/50Hz/1000W |
