Description
The stereo, stereoscopic or dissecting microscope is an optical microscope variant designed for low magnification observation of a sample.
The stereo microscope is often used to study the surfaces of solid specimens or to carry out close work such as dissection, microsurgery, watch-making, circuit board manufacture or inspection, etc. Stereo microscopes are essential tools in entomology.
Specifications

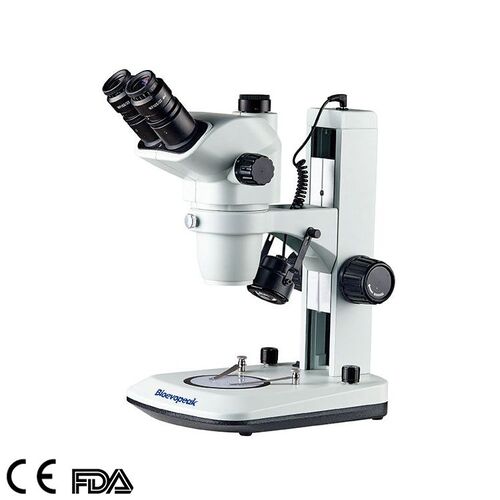

| Model | MSC-ST7045T |
| Magnification | Zoom objective 6.7X-45X |
| Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses*Optional Eyepiece15X/16mm，20X/12mm，25X/9mm，30X/8mm |
| Main Body | Trinocular head，45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment:±5 diopters |
| Interpupillary Distance adjustment:54-75mm | |
| Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 |
| *Aux Lens：0.5X，2X | |
| Focusing Mount | Focusing track mount with vertical working distance 104mm |
| Stand | Track StandVertical Height：300mm；Mounting Size：φ76mm；Focusing Distance：106mm；With φ95mm B/W Plastic & Perspex Plate and Paired Clips；Base Size：205x275x40mm |
| Illumination | Top and bottom LED Illumination with an independent control；Input Power：110v~240v |
| C-Mount | MSC 1X C-Mount；*MSC 0.5X C-Mount； |
| Information：MSC-ST7045 3.35X-270X with optional eyepieces and objectives; | |
| *Optional configuration | |
