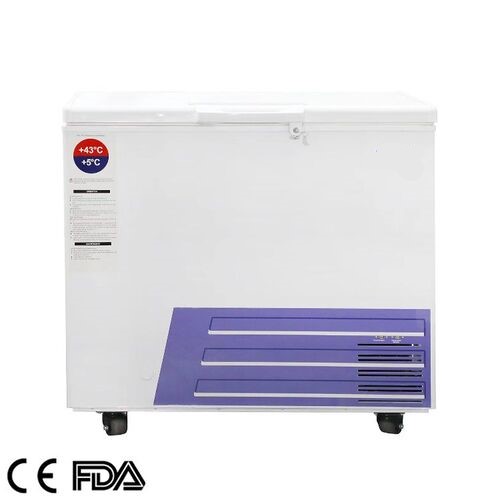

Solar Medicine Refrigerator, CRF10-S97
1. Vaccine Working Temperature:2~8℃
2. Freezer Working Temperature:≤-10℃
3. Humanized design
4. Multiple alarm functions
5. Solar direct drive, environmental protection
6. Wide climate design
7. 30 days temperature record

Application
Solar vaccine refrigerator and freezer is used in vaccine storage, medicines and ice packs, suitable for hospitals, CDC, and scientific research institutions, etc.

Advantages
Solar direct drive, green and environmental protection.
Microcomputer control, solar temperature display, resolution is 0.1℃.
30 days temperature record.
Wide climate design, suitable for 5~43℃ ambient temperature.
Over 180 hours of holdover at 43℃ ambient temperature.

Safety control system
Multiple alarm functions: high and low temperature alarm, sensor malfunction alarm , low-battery alarm.
Two alarm modes: Sound buzzer alarm, digital flashing alarm.

Humanized design
Safety door lock design to prevent arbitrary opening.
USB charging function.
Aluminum inner tank design, a drainage hole at the bottom, easy to clean.
With baskets, easy to use.
Low noise.

Product characteristic curve


Specifications

ModelCRF10-S97
   Technical DataTypeChest Type
Vaccine Gross Capacity59L
Vaccine Storage Capacity48L
Freezer Gross Capacity38L
Holdover Time180h
Water-pack Freezing Capacity2kg/24h
Water-pack Storage Capacity10kg
Cooling TypeDirect Cooling
DoorFoaming Door
RefrigerantR290
  Temperature ControlVaccine Working Temperature2~8℃
Freezer Working Temperature≤-10℃
Ambient Temperature5℃~43℃
ControllerMicroprocessor
Temperature setting Accuracy0.1
DisplayLED Digital Display
 Electrical DataVoltageDC 18-28V
Power190W
Current8A
Power Consumption (Stable Running)1.7kW·h/24h
Power Consumption (Cool Down Test)2kW·h/24h
DimensionsExterior Dimension(W*D*H)1050*750*975mm
Package Dimension(W*D*H)1127*781*1075mm
WeightNet Weight100kg
Gross Weight130kg
  FunctionsHigh /Low Alarm FunctionYes
Sensor Error AlarmYes
Low Battery AlarmYes
Freeze-Protection ClassificationA
Data InterfaceUSB
Charging Interface5V
AccessoriesVaccine Basket Qty.2
