Description
1. Sample compartment for 5-100mm cuvettes
2. Equipped with RS232 port
3. Precise automatic T/A changeover
4. Automatic zero and full scale adjustment
5. Direct concentration read-out and concentration factor setting function
6. Standard software
Applications of UV-Vis Spectrophotometer
G series economic UV-Vis Spectrophotometer been widely used in colleges and enterprises for general quantitative analysis and experiments based in absorbance measurements.
Common Features of UV-Vis Spectrophotometer
1. High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure thehigh quality accuracy and precision.
2. Backlit LCD display for an easy readout.
3. Automatic 0A and 100%T.
4. Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
5. Direct concentration read-out and concentration factor setting function.
6. Large sample compartment, for 5 – 100mm path length cuvettes with optional holders.
7. Easy to change the halogen lamp or deuterium lamp by the user himself.
Specifications

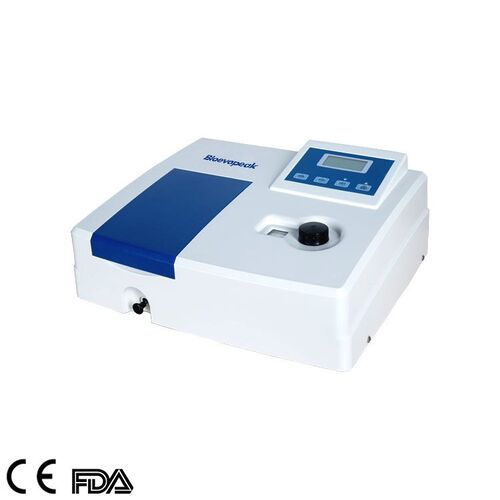

| Model | SP-IUV752G |
| Photometry | Single Beam |
| Monochromator Type | Czerny-Turner |
| Detector | Silicon Photocell |
| Wavelength Setting | Manual Turn Knob |
| Wavelength Range | 200-1000nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Spectrum Bandwidth | 4nm |
| Stray Light | ≤0.3%T |
| (at 220nm NaI, 360nm NaNo2) | |
| Photometric Range | 0-100.0%T |
| 0-1.999A | |
| 0-1999C | |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ≤0.2%T |
| Noise | 100%（T）noise≤0.3%(T) ， 0%（T）noise≤0.2%(T) |
| Drifting | ±0.5 %T/3min |
| Cuvette Holder Size | 50mm |
| Power | AC220V±22V 50Hz±1Hz, 130W |
| Packaging Size | 560mm×490mm×285mm 0.08M³ |
| G.W. | 16kg |
Standard Accessories
- User manual 1pc
- Glass cuvette 1cm 4pcs (SP-IV721G/SP-IV721G-100/SP-IV722G only)
- Quartz cuvette 1cm 2pcs
- Power cable 1pc
- Fuse 2pcs
Optional Accessories
- 50mm cuvette holder
- Cuvette holder 100mm (721G-100 only)
