DESCRIPTION

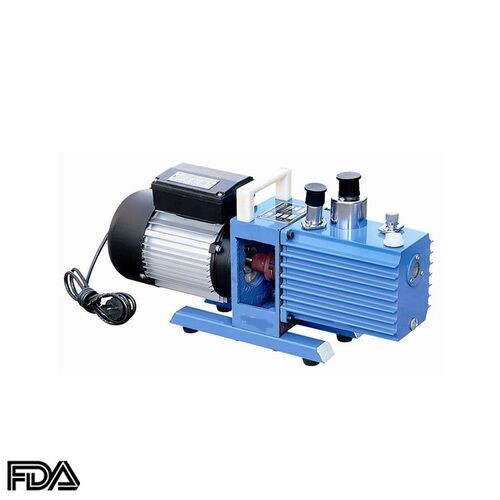

VACP-R Series vacuum pump can be used either independently as main and can also be served as fore pump for booster pump diffusion pump and molecular pump or as holding pump for a vacuum system and as a pre-pumping for different kinds of the pumps. So that is can be applied in electro-vacuum industries, vacuum flask manufacturing, vacuum welding and as an accessory to those fine gauges or meters where vacuum is required .It is more suitable for laboratory use because of its small size ,less weight and quiet operation
- Small size, light weight, low noise
- Equipped with a gas ballast valve, which can pump out a small amount of water vapor
- Equipped with automatic anti-return oil double safety device
- Small-caliber VACP-R2 and VACP-R4 vacuum pumps are specially equipped with vacuum drying ovens, freeze dryers, and printing machinery
- Equipped with small diameter adapter and KF interface.
SPECIFICATION
| Model | VACP-R1 | VACP-R2 | VACP-R4 | |
| Pumping Speed: m3/h(L/S) | 50（HZ） | 3.6（1） | 7.2（2） | 14.4（4） |
| 60(HZ) | 4.3（1.2） | 8.6（2.4） | 17.2（4.8） | |
| Limit pressure （Pa） | Partial | ≤6×10-2 | ≤6×10-2 | ≤6×10-2 |
| Total | ≤1.33 | ≤1.33 | ≤1.33 | |
| 50HZ | Speed（r/min） | 1400 | 1400 | 1400 |
| 60HZ | Speed（r/min） | 1720 | 1720 | 1720 |
| Power （Kw） | 0.25 | 0.37 | 0.55 | |
| Voltage（V) | 220/380 | 220/380 | 220/380 | |
| Inlet diameter (mm) (outer diameter) | φ20 | φ30 | φ30 | |
| Inlet diameter (mm) (inner diameter) | Φ16 | φ25 | φ25 | |
| Noise（dBA） | 65 | 68 | 68 | |
| Oil capacity: L | 0.7 | 1 | 1.2 | |
| Oil consumption：L | 0.55 | 0.65 | 0.8 | |
| Overall Dimensions: mm | 469×168×260 | 514×168×282 | 565×168×282 | |
| Weight（Kg）net/gross | 18/17 | 22/20 | 24/22 | |
