Description

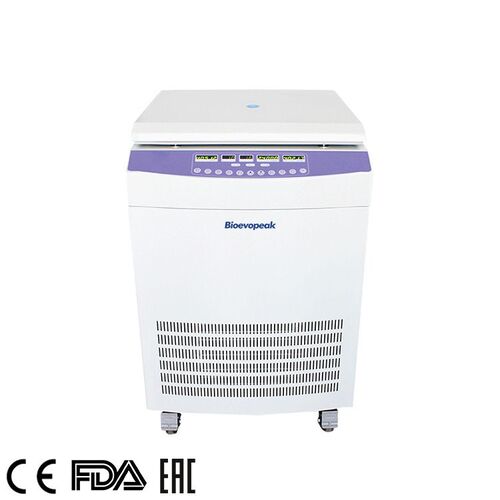

1. Universal centrifuge with selectable options (optional fixed-angle rotor, swing-bucket rotor, microplate rotor).
2. Silent operation.
3. Microprocessor-controlled centrifuge with variable speed and time setting.
4. LCD display for easy setting and readability across multiple parameters (rotor model, temperature, time, RCF, and RPM).
5. Soft touch keypad for parameters setting, special key for RCF.
6. Brush-less AC motor for maintenance-free long life.
7. Double lids and double locks, lid locking and holding during rotor run for safe operation.
8. User programmable-user can save and run up to 20 user-defined programs.
9. Adjustable ramp & brake speeds (up to 15-speed selection).
10. Count down at set RPM & one touch short spin operation.
11. Automatic imbalance detection with an audible alarm & overspeed protection.
12. User can set parameters when the centrifuge is in operation (not the program).
13. The shortest acceleration/braking time is less than the 30s.
14. Pre-cooling function, quick cooling function- rotor chamber attains 4°C from ambient temperature in 10 minutes.
15. Stand-by function maintains a constant temperature.
16. Danfoss compressor.
Specifications
CFGR-24JL CFGR-24J
| Model | CFGR-24J | CFGR-24JL |
| Max. speed | 23000 rpm | 24000 rpm |
| Max. RCF | 36795×g | 40217×g |
| Max. capacity | 4×300 mL | 4×750 mL |
| Speed accuracy | ±20 rpm | |
| Timer | 1 s-99 min, continuous operation, one touch short spin operation | |
| Noise | ≦60 dB | |
| Temperature range | -20℃-40℃ | |
| Power | 220V 50Hz | |
| Weight | 95 kg | 150 kg |
| Dimensions (W×D×H) | 570mm×590mm×490mm | 600mm×790mm×890mm |
Rotor configuration
| Fixed-angle rotor model | Max. capacity | Parameter | CFGR-24J | CFGR-24JL |
| H0.512 | 12×0.5 mL | Max. rpm | 23000 rpm | 24000 rpm |
| Max. RCF | 32625×g | 32625×g | ||
| H0.524 | 24×0.5 mL | Max. rpm | 18000 rpm | 18000 rpm |
| Max. RCF | 24631×g | 24631×g | ||
| H0212 | 12×1.5 mL/2.2 mL | Max. rpm | 22000 rpm | 23000 rpm |
| Max. RCF | 36795×g | 40217×g | ||
| H0224 | 24×1.5 mL/2.2 mL | Max. rpm | 16500 rpm | 16500 rpm |
| Max. RCF | 25871×g | 25871×g | ||
| H0236 | 36×1.5 mL/2.2 mL | Max. rpm | 14000 rpm | 14000 rpm |
| Max. RCF | 34237×g | 34237×g | ||
| H0512 | 12×5 mL | Max. rpm | 16500 rpm | 16500 rpm |
| Max. RCF | 25871×g | 25871×g | ||
| H1012 | 12×10 mL | Max. rpm | 15000 rpm | 15000 rpm |
| Max. RCF | 22891×g | 22891×g | ||
| H1508 | 8×15 mL | Max. rpm | 12500 rpm | 12500 rpm |
| Max. RCF | 15721×g | 15721×g | ||
| H30068 | 6×30 mL | Max. rpm | 15000 rpm | 15000 rpm |
| Max. RCF | 21885×g | 21885×g | ||
| H5006 | 6×50 mL | Max. rpm | 13000 rpm | 13000 rpm |
| Max. RCF | 19838×g | 19838×g | ||
| H8504 | 4×100 mL | Max. rpm | 12000 rpm | 12000 rpm |
| Max. RCF | 16904×g | 16904×g | ||
| H0.548 | 48×0.5 mL | Max. rpm | 16000 rpm | 16000 rpm |
| Max. RCF | 22324×g | 22324×g | ||
| H0.232 | 32×0.2 mL | Max. rpm | 12000 rpm | 12000 rpm |
| Max. RCF | 10464×g | 10464×g | ||
| H8506 | 6×100 mL | Max. rpm | 12000 rpm | 12000 rpm |
| Max. RCF | 19320×g | 19320×g |
| Model | CFGR-24J | CFGR-24JL |
| Swing out rotor | 4×300 mL, 4500 rpm, 3781×g | 4×750 mL, 4200 rpm, 3550×g |
| Adapter1: (bucket) | 4×250 mL, 4×100 mL, 12×50 mL (round bottom), 40×10 mL(round bottom),20×15 mL (conical), 56×5 mL | 4×500 mL, 4×250 mL, 12×100 mL (round bottom), 20×50 mL (conical), 56×15 mL/20 mL (round bottom), 76×15 mL, 96×5 mL, 144×5 mL |
| Microplate | 2×2×96 | |
