Description

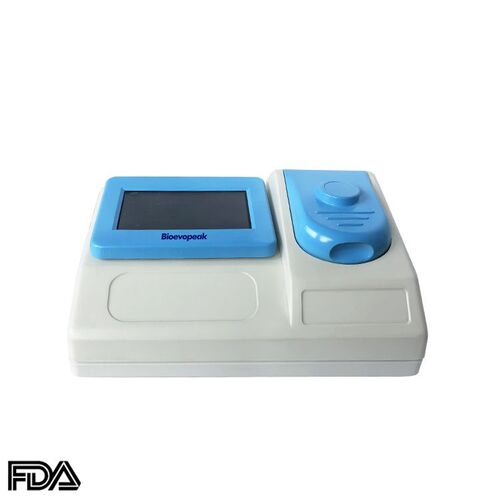

A Portable visible spectrophotometer is small in appearance and powerful in function. It adopts 5-inch true color touch screen and has humanized design, which makes the operation easier and meets the needs of different customers. It is widely used in teaching and daily analysis
Luminosity measurement
Test the absorbance, transmittance, and energy of the sample at a certain wavelength.
Quantitative test
Establish a standard curve for the concentration test (A4L).
Specifications
| Model | SP-HVP-A4 | SP-HVP-A4L |
| Spectral bandwidth | 6nm | 5nm |
| Wavelength range | (340nm-1000nm)(320-1100nm) | |
| Optical system | Proportional double beam, optical path, holographic diffraction grating | |
| Wavelength accuracy | ±1.0nm | |
| Wavelength repeatability | ≤0.5nm | |
| Wavelength setting | The automatically set wavelength, wavelength resolution: 0.1nm | |
| luminosity range | -0.602-4.0A 0-400%T | |
| luminosity accuracy | ±0.002A (0-0.5A), ±0.004A (0.5-1A), ±0.3%T (0-100%T) | |
| Luminosity repeatability | ≤0.001A (0-0.5A), ≤0.002A (0.5-1A), ≤0.1%T (0-100%T) | |
| Stray light | ≤0.1%T (360nm) | |
| Baseline drift (stability) | ≤0.001A/h (500nm,0A) | |
| Detector | Imported silicon photodiode | |
| Light source | Imported long-life tungsten lamp (optical debugging free) | |
| Display screen | 480*272,5-inch color touch screen | |
| Printout | Micro printer; PC printer (online use) | |
| Power supply | DC12V 3A | |
| External dimensions | 270x200x120mm | |
