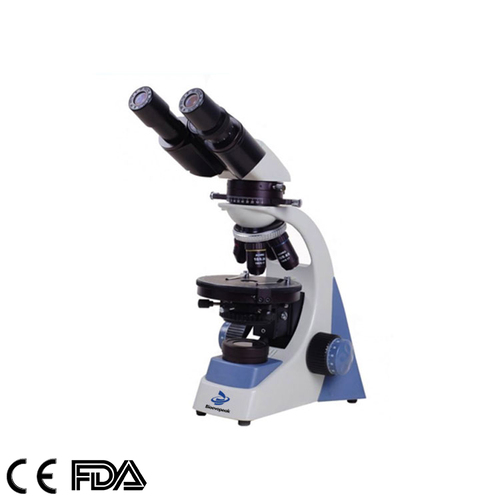

Polarizing Microscope
Specifications
| Model | MSC-P1 |
| Viewing Head | Seidentopf binocular head inclined at 30°， Interpupillary 55-75mm |
| Eyepiece | WF10X18mm |
| Objective | Achromatic objective：4X、10X、40X(s)、100X(s，o) |
| Nosepiece | Quadruple nosepiece |
| Analyzer | Rotatable analyzer with gradation 0°-90°； Sliding in/out of the optical path |
| Optical Compensator | λSlip(Firstclass red) ；1/4λSlip |
| Revolving RoundStage | Diameter p160mm， 360°Rotatable and graduate in 1°Increments， Minimum resolution 6’whenusing venire scale， Center adjustable |
| Condenser | Abbe Condenser NA 1.25 with Iris diaphragm&filter |
| Focusing | Coaxial coarse&fine adjustment， range 14mm， fine division 0.01 |
| Polarizer | 360°Rotatable located |
| Illumination | 1WLED， Brightness adjustable |
