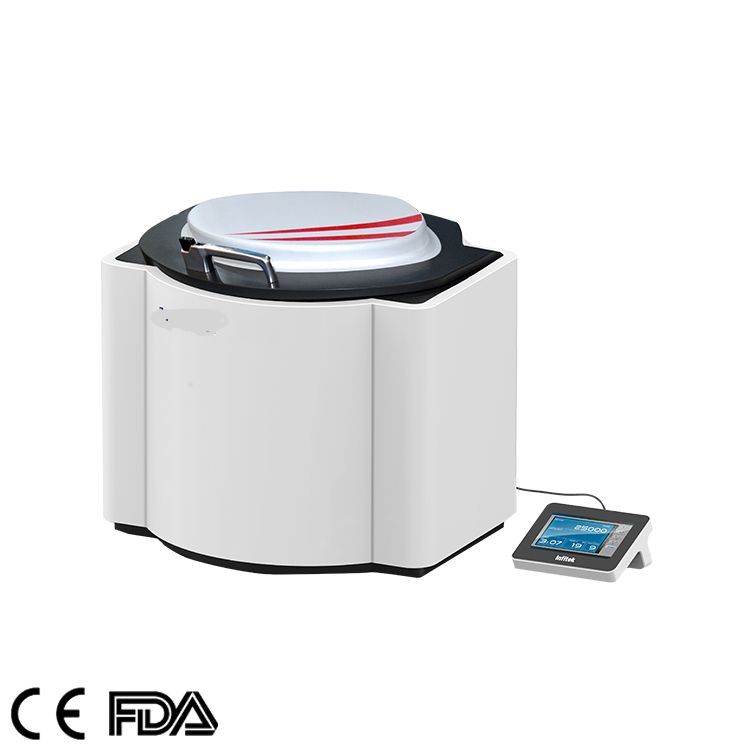

Microwave Digestion/Extraction System, MDS-700-T18
Vessel Quantity:18
Vessel Volume:100mL
Temperature Monitoring: Contact-less IR sensor
7-inch touch screen display

Description

It has been widely used in food, textile, geology, metallurgy, plastics, coal, cosmetics, petrochemicals, biomedicine, environmental monitoring, sewage treatment and other fields.

Features

  • Special designed sample digestion vessel

The automatic vent and self-resealing structure ensures the digestion vessels can automatically release pressure and instantly reseal when a sudden over-pressure situation occurs.

  • Contact-lesstemperature and pressure monitoring system

The advanced contact-less IR sensor could measure the real-time temperature of sample solutions in each digestion vessel. Meanwhile, the contact-less pressure sensor could monitor the real-time pressure of each vessel.

  • Large storage capacity

It can edit and store 255 types of programs according to user’ s requirements and each method program can set parameters (temperature, pressure, time, microwave power) according to their own requirements which provides convenient operation for users.

  • Safety protection system

With high-strength double locked security door, the real-time temperature and pressure monitoring, automatic adjustment of over-pressure and over-temperature and abnormal sound monitoring, the device can run in a highly safe environment.

  • Power adjustment

The variable frequency resonance or non-pulse(optional) continues rotating mode ensures high efficient and even microwave throughput. it can be set between 0~2000W/0~3000W according to user’ s requirements.

Specifications

ModelMDS-700-T18
Vessel Quantity18
Vessel Volume100mL
Temperature Monitoring SystemTemperature monitoring: Contactless IR sensorTemperature control:Scanning control of each vesselTemperature control range: 50~400℃;Temperature control accuracy:±0.3℃
Pressure Monitoring SystemContact-less pressure sensorPressure control range:0~10MPaPressure control accuracy:0.01MPa
Vessel MaterialInner: imported TFMOuter: imported PEEK+glass fiber
Display7-inch touch screen
Rotation Mode360° Continuous rotation
Microwave Power0-2000W adjustable/ 0-3000W adjustable
Microwave Leak<5mW/cm²
Microwave Frequency2450MHz
Max. Working Pressure6MPa
Max. Working Temperature250℃
Inner Vessel Temperature Limit300℃
ElectricityAC 220V, 16A, 50/60Hz
Dimension(L*W*H)640*630*590mm
N.W./G.W.75kg/148kg(Main device+Accessories)
Shipping Dimension(L*W*H)800*800*810mm (Main device),620*590*560mm (Accessories)
