Description

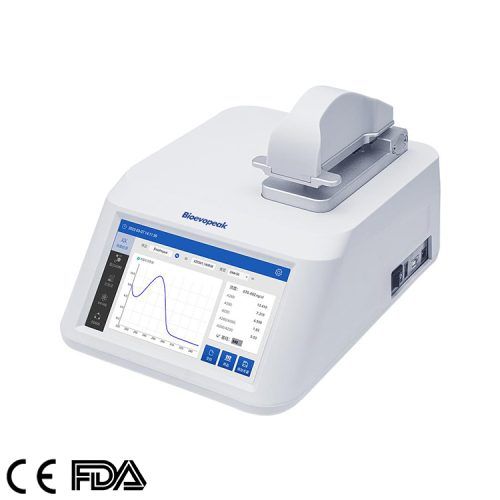

It has a 7-inch capacitive touch screen, multi-touch, and humanized design;No computer is required for measurement and data storage and the sample detection and data storage can be completed by a single machine, which is very convenient to use.
Features
1. Friendly Android operation system, 7-inch touched screen.
2. Cuvette slot available for bacteria/microbe concentration test.
3. Measurement without dilution, test result display and read easily.
4. Long life’s Xenon flash lamp.
5. Reliable and quick data USB output for analysis.
6. No computer is required for measurement and data storage.
7. Image and excel table can be output.
8. External printer is optional.
9. Only 0.5~2μL sample volume requested, which can be recycled after test, ideal for precious samples.
Specifications
| Model | SP-YUV100 |
| Wavelength Range | 190~900nm；cuvette (OD600):600±8nm |
| Sample Capacity | 0.5~2.0μL |
| Optical Distance | 0.05mm,0.2mm,1.0mm |
| Light Source | Xenon flash lamp |
| Detector | 2048-element linear silicon CCD array |
| Absorbed Light Accuracy | 0.003Abs |
| Absorbance Accuracy | 1％（7.332 Abs at 260nm） |
| Absorbance Range(equaled 10mm） | 0.02-300A; Cuvette (OD600 ):0~4A |
| Nucleic Acid Concentration Range | 2~15000ng/μL (ds DNA) |
| Detection Time | ＜6s |
| Wavelength Accuracy | 1nm |
| Spectral Resolution | ≤ 3nm（FWHM at Hg 546nm） |
| Protein Detection Range | A280 400mg/mL; BSA 600mg/mL；IgG 290mg/mL; Lysozyme 150mg/mL |
| Material of Sample Base | 304 Stainless steel and Quartz fiber |
| Operation System | Android |
| Data Export | USB |
| Power Adaptor | 12V 4A |
| Standby Power | 5W |
| Power | 48W |
| Dimension(W*D*H) | 270*210*196mm |
| N.W./G.W. | 3.5kg/6kg |
| Shipping Dimension(L*W*H) | 400*380*280mm |
