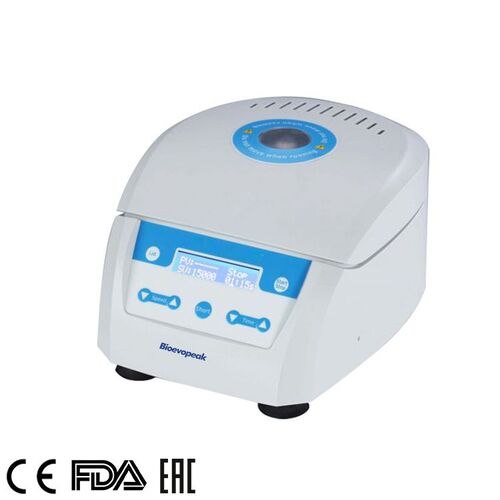

Microcentrifuge, high speed, CFG-Mini15R
Max Speed: 15000rpm
Max RCF: 15080xg
Capacity: 12×1.5/2.0ml centrifuge tubes
Multiple security protection functions
Ultra-quiet operation

Description

CFG-Mini15R High-speed Mini-centrifuge is a compact centrifuge capable of achieving centrifugal speeds up to 15000rpm, approximately 15080g. It is used for extracting RNA/DNA samples, sedimentation of biological components, and biochemical and chemical analysis of micro samples. Automatic imbalance switch-off and locking of the lid provide safe operation. The rotor accepts 1.5 to 2.0ml tubes directly, as well as 0.5ml and 0.2ml tubes with optional adapters.

 Features:

1. LCD provides a clear indication of time and rpm or RCF.

2. RPM/RCF setting as required.

3. The rotor is made of nylon material, with corrosion resistance, which minimizes the temperature increases during long runs at high speed.

4. Acceleration and deceleration in just 14 seconds.

5. Safety operation: rotor imbalance diagnostic; automatic stop.

6. Motor overheating protection function.

7. A separate momentary short button permits instant spin downs.

8. Less sample heating (only 5°C after 30min, at max speed).

9. A brushless motor provides noiseless performance and long service.

Specifications

ModelCFG-Mini15R
Capacity12×1.5/2.0ml centrifuge tubes
Speed range500~15000rpm
 RCF range 16~15080xg
Timing range15sec~99min59sec/∞
 Acceleration14sec(0~15000rpm)
Deceleration14sec(15000~1000rpm)
Rotor imbalance diagnosticYes
Motor overheating protection functionYes
Power120W
VoltageDC24V/5A
Dimension255x194x140mm
Weight2.3kg
