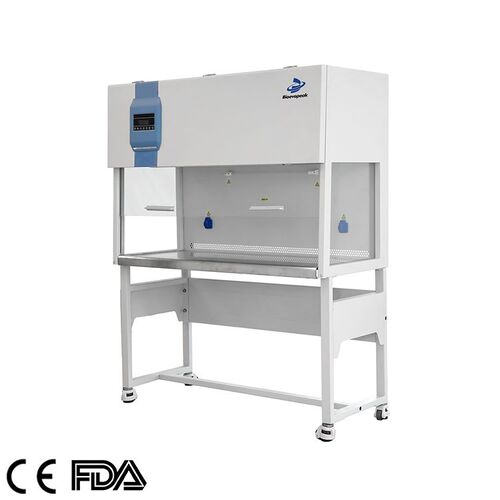

Laminar Flow Cabinet, Vertical Type, LCB-VA1300
Ergonomic design makes work more comfortable
One button start sterilization reservation function
UV lamp starts with a delay and is safe to use
Fan speed can be adjusted to meet user needs

It’s a professional localized air purification equipment suitable for pharmaceuticals, medical and health, scientific research laboratories of universities and colleges,photoelectric/microelectronics manufacturing and other fields.

High efficiency filter is adopted to ensure air cleanliness

  • Adopting moisture-proof and flame retardant glass fiber high efficiency filter (HEPA), the interception efficiency of solid particles larger than 0.3 micron diameter is greater than 99.99% .
  • The cleanliness is better than the 100 cleanliness requirements, practical and safety.

Split underframe makes it easier to move

  • The base box is detachable, which is flexible to carry and easy to install.

Anti-radiation tempered glass is more safer

  • Adopt transparent anti-radiation tempered glass to increase daylight and keep away from ultraviolet radiation.

Sterilization intelligent interlock, automatic control

  • The illuminating lamp and the UV lamp are interlocked, and the UV lamp can only be turned on when the illuminating lamp is turned off; after the fluorescent lamp is turned on, the UV lamp will be turned off immediately to ensure practical safety.
  • The UV lamp has the function of timing off, and the sterilization time is adjustable within a certain range.
stainless steel table top, LCB-VA1300

304 stainless steel table top

  • The front arc convex design prevents liquid from flowing out and is more safer
Display panel, LCB-VA1300

Display panel

  • Intelligent control, easy to operate
Waterproof socket,LCB-VA1300

Waterproof socket:

  • prevent liquid from entering the socket, and use electricity safely
UV lamp,LCB-VA1300

UV lamp

  • one button UV lamp sterilization, intelligent interlock to prevent radiation to people

Specifications

ModeLCB-VA1300
Flow TypeVertical
Voltage/Frequency(V/Hz)AC 220/50
Power(W)1200
Vibration Amplitude(UM)2
Exhaust Filter Typical EfficiencyH13 HEPA,99.99%@0.3um
Average Velocity (m/s)0.2-0.5
Fluorescent Lamp Intensity(Lux)≥300
Net/Gross Weight (approx.)kg150/178
lbs330/392
Sound Emission dB(A)62
Internalmm1300*516*520
Dimensions(W*D*H)in51.2*20.3*20.5
External Dimensions(W*D*H)mm1370*611*1754
in53.9*24.1*69.1
Packing Dimensions(W*D*H)mm1505*745*1280
in59.3*29.3*50.4
Cleanliness ClassificationISO 14644.1 Class 5
Container Load (20’/40’/40’H)10/25/25
