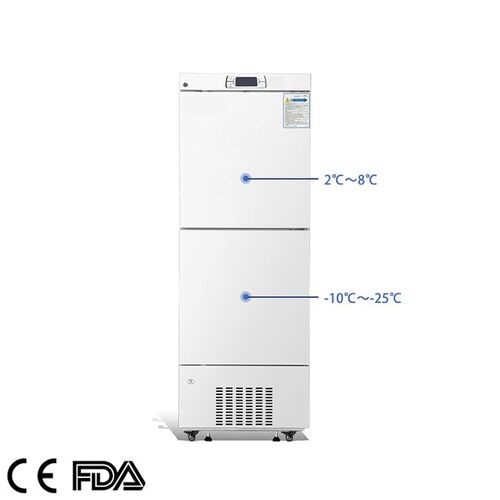

Description
Combination Refrigerator Freezers are designed to store frozen plasma, biomaterials, vaccines, electronic devices, and low-temperature tests of special materials. Combination refrigerator freezers have a dual container structure that allows for refrigeration and freezing of laboratory samples and materials using the same unit.
Key Features
1. Temperature range:
Refrigerator Room: 2℃~8℃.
Freezer Room: -10℃~-25℃
2. Independent temperature display, 2 independent doors: heated foam glass door + foamed door.
5. 2 Shelves in refrigerator room; 3 drawers in the freezer room.
Specifications
| Model | CRF25-300 | |
| Specifications | Shelf (drawer) | Shelves/2 and draws/3 |
| Cooling method | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | R290 | |
| Power consumption (kWh/24h) | 2.96 | |
| Noise（db) | 49 | |
| Ambient temperature（℃） | 10～32℃ | |
| Temperature range（℃） | F: -10℃～-25℃ R: 2℃～8℃ | |
| Cooling system | Compressor brand/QTY | China brand 2 |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital Display | |
| Power | Voltage/frequency(V/Hz) | 220V/50Hz |
| Power(W) | 349W | |
| Current(A) | 2.2 | |
| Material | Inside material | Engineering plastics |
| Outside material | SPCC sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | R: 198 F: 102 |
| NW./GW.(kg) | 100/120 | |
| Exterior size(W×D×H)(mm) | 650×620×1980 | |
| Interior size(W×D×H)(mm) | R: 565×480×759 (mm） F: 461×465×600(mm) | |
| Package size(W×D×H)(mm) | 720×695×2015 | |
| CBM | 1 | |
| 20GP/40GP/40HQ | 24/48/48 | |
| Alarm | High/low temperature | Y |
| Power off | Y | |
| Sensor malfunction | Y | |
| Ambient temperature（℃） | / | |
| Abnormal voltage | / | |
| Temperature controller malfunction | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 8H | |
| Accessories | Caster | Y |
| Test hole | / | |
| USB port | / | |
| Temperature Data logger | Optional | |
| Remote alarm | / |
