SPECIFICATIONS

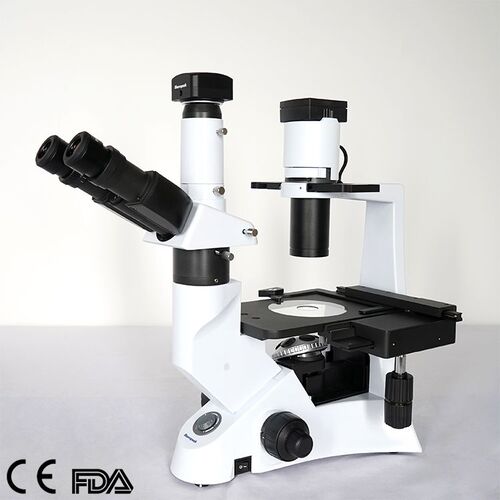

| Model | MSC-IV100 |
| Optical System | Infinite Optical System |
| Viewing head | Trinocular Head Inclined at 30°, Interpupillary Distance 48-75mm |
| Eyepiece | EW10X/22 Extra Wide Field Eyepiece EW10X/22 |
| Nosepiece | Quintuple Nosepiece |
| Objective | LWD Infinite Plan Objective：10×，20×，40× |
| Infinite Plan Phase Objective：10×，20× | |
| Stage | Plain Stage 160X250mm；Glass Insert； Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120X78mm； 70X180mm Auxiliary Stage 70X180mm；Terasaki Holder； Petri Dish Holder Φ35mm/Φ54mm/Φ90mm； Slide Glass Holder Φ54mm |
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) |
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm |
| Centering telescope | Centering Telescope (Φ30MM) |
| Illumination | Halogen Lamp 6V 30W |
| Phase Annulus | 10X-20X、40X Phase Annulus Plate（Fixed） |
| Filter | Blue、Green and Ground Glass, Diameter 45mm |
| Accessories | Inverted Fluorescent Attachment Video Adapter with C Mount |
*Optional configuration
