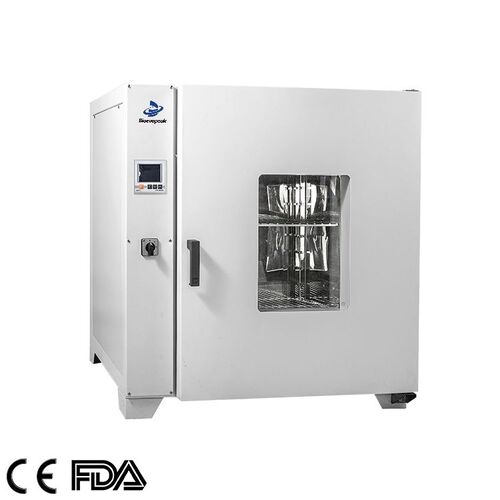

Infrared Fast Heating Drying Oven, DON-IF Series
Volume(L): 43, 81, 138, 252
Temp. Range: RT +10~250℃
Leakage protector
Equipped with spare temperature control
Natural convection

Description

Features:

1. Microprocessor controller with LCD display make the temperature accurate and reliable.

2. Anti-hot handle.

3. Toughened-glass inner door: convenient to observe chamber condition without affecting chamber temperature.

4. Working chamber adopts high-quality stainless steel and a round angle structure, easy to clean.

5. Silicon sealing ring for reliable sealing.

6. Leakage protector

7. Equipped with spare temperature control which ensures the product work normally even if the main temperature control failed.

8 Equipped with multiple sets of heaters, far-infrared heating radiator, and temperature control.

9. Adopt a temperature selection switch that can select the grade according to the heating speed and operating temperature.

10. Convenient operation for air inlet, reasonable air duct structure, good temperature uniformity.

Optional Accessories:

Multi-segment programmable control

Built-in Printer

RS485 interface.

Specifications

ModelDON-IF45DON-IF80DON-IF140DON-IF250
Capacity43L81L138L252L
Temp. RangeRT+10~250℃
Temp. Fluctuation±1℃
Temp. Resolution0.1℃
Temp. Uniformity≤Max. Temp. ±3.5℃
Shelves2pcs/adjustable
Consumption1400W2000W2800W4000W
Power SupplyAC110/220V±10%, 50/60Hz
Internal Size(W*D*H)350*350*350mm450*400*450mm500*500*550mm600*600*700mm
External Size(W*D*H)640*500*600mm730*530*690mm780*690*800mm880*730*950mm
Package Size(W*D*H)750*570*840mm850*600*900mm900*760*1000mm1060*800*1100mm
Net/Gross Weight36/56kg51/81kg76/111kg111/151kg
