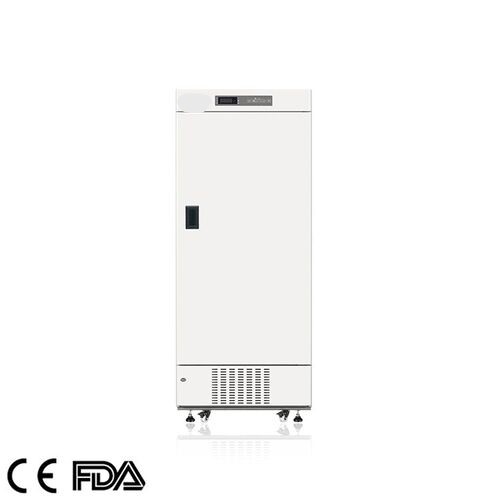

Explosion Proof Refrigerator, PR5-416EX
1. Capacity:416L
2. Temperature Range:2~8℃
3. Refrigerant:R290a
4. Digital display
5. Anti-explosion compressor and controller system

Description

Application
It is specially designed to store medicines, vaccines, reagents and bio-medical products with anti explosion function.
Key Features
Anti-explosion compressor and controller system to protect inner storage more safely.
Specially designed forced-air cooling system, ensure frost-free cabinet and good temperature uniformity.
Accurate temperature controller, ensure the inside temperature within 2~8°C and accuracy 0.1 °C.
Suggested ambient temperature: 10~32°C.
4 casters for easy moving and fixation.

Reliability
Wide available voltage range: 187V~242V.
Foamed door with for better heat protection
Color spray steel plate inner chamber for friendly using and easy cleaning.
5 adjustable steel wire shelves for easy storing.
Special designed service-free drainage system, ensures no water in the cabinet.
Auto on/off LED light with manual switch on control panel.

Safety
Safety door lock and controller setting password to prevent unauthorized access.
Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.
Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar
Power failure protection: turn on delay of the cooling system after power failure.
Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
Keyboard lock, password protection to avoid set parameter randomly.

Optional
Temperature recorder

Specifications

ModelPR5-416EX
Capacity (L)416
Dimension (W*D*H)Internal (mm)685*429*1380
External (mm)785*552*1927
TemperatureRange (℃)2~8
SensorPT100
ControllerMicroprocessor
Cooling systemRefrigerantR290a
DefrostFrost free
Compressor qty.1
DisplayDigital display
Audible&Visible AlarmHigh/Low temperatureStandard
High ambient temperatureStandard
Abnormal voltageStandard
Power failure backup system(alarm)Standard
Door ajarStandard
MaterialInternalSUS
ExternalPowder coated steel
AccessoriesUSB portStandard
CastersStandard
Chart recorder/
Data loggerOptional
Remote alarm portStandard
Test hole (Qty) / Diameter (mm)1/25
Shelves / Drawers (Qty)Shelves / 5
Sound Emission (dB)45dB
ElectricityVoltage/Frequency(V/Hz)220/50~60;115/60
Consumption (W)290
N.W./G.W. (Kg)150/165
Shipping Dimension  (W*D*H) (mm)880*640*2100
