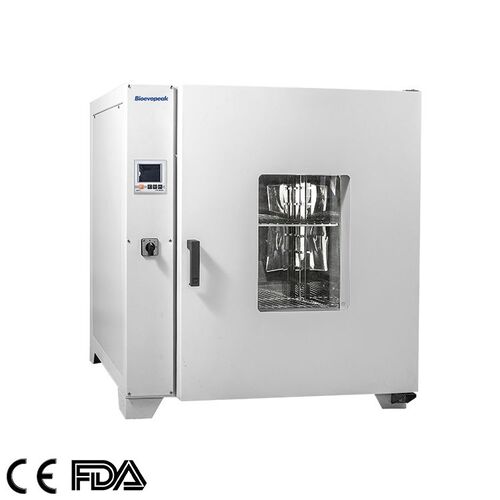

Dual Convection Oven, DOF-H Series
Volume(L):43, 81, 138, 252
Temp. Range:RT+10℃-300℃
Auxiliary temp. control
Leakage protection
Natural convection, forced convection can be selected

Description

1. Equipped with multiple sets of heaters.

2. Adopt a temperature selection switch that can select the grade according to the heating speed and operating temperature.

3. Convenient operation for air inlet, reasonable air duct structure, and good temperature uniformity.

4. Toughened-glass inner door: convenient to observe chamber condition without affecting chamber temperature.

5. Microprocessor controller with LCD display make the temperature accurate and reliable.

6. Working chamber adopts high-quality stainless steel and a round angle structure, easy to clean.

7. Silicon sealing ring for reliable sealing.

8. Leakage protection: When the equipment has leakage, the equipment will cut off its own power supply, which will not affect the normal operation of other equipment in the laboratory, and protect the safety of personnel and the laboratory.

9. Anti-hot handle.

10. Auxiliary temp. control: Dual temperature control system, which is more accurate and stable. Ensure that the equipment can control the temperature and operate normally when the main temperature controller is out of control.

Optional Accessories:

Multi-segment programmable control

Built-in Printer

RS485 interface.

Specifications

ModelDOF-H45IIDOF-H80IIDOF-H140IIDOF-H250II
Cycle ModeDual Convection: Force Air and Natural convection
Capacity43L81L138L252L
Temp. RangeRT+10~300℃
Temp. Fluctuation±1℃
Temp. Resolution0.1℃
Temp. Uniformity≤Max. Temp. ±3.5℃
Shelves2pcs/adjustable
Consumption1300W2000W2500W3000W
Power SupplyAC110/220V±10%, 50/60Hz
Internal Size(W*D*H)350*350*350mm450*400*450mm500*500*550mm600*600*700mm
External Size(W*D*H)640*500*600mm730*530*690mm780*690*800mm880*730*950mm
Package Size(W*D*H)750*630*770mm850*660*860mm900*760*980mm1000*860*1100mm
Net/Gross Weight35/55kg50/80kg75/110kg110/150kg
