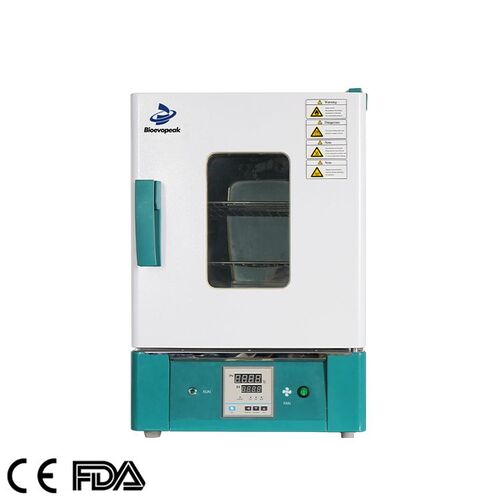

DESCRIPTION
- Horizontal air circularly by double Air ducts, high efficiency, and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With Oven/Incubator change switch, fan switch; and high-temperature blast motor, LED digital display
4. New anti-hot handle.
| 1. LCD temperature controller. SSR to make sure the safety2. High precision digital independent temperature limiter |
SPECIFICATIONS
| Model | DOI-30E | DOI-45E | DOI-65E | DOI-85E | DOI-125E | DOI-230E | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
| Cycle Mode | Forced convection | ||||||
| Function | Temp. range | High-quality rock wool board(with CE) | |||||
| Drying oven:80-300℃ | |||||||
| Temp. Resolution Ratio | 0.1℃ | ||||||
| Temp. Motion | ±1℃ | ||||||
| Temp. Uniformity | Incubator:±1.0℃ | ||||||
| Drying oven:±2.5% | |||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
| Insulation layer | High quality rock wool board(with CE) | ||||||
| Heater | Stainless steel heater | ||||||
| Exhaust hole | φ28mm top(with function of test hole) | ||||||
| Controller | Temp. control mode | PID Two temperature section intelligent PID | |||||
| Temp. setting mode | Touch button setting | ||||||
| Temp. display mode | DOI-E type: LED Digital Display | ||||||
| Timer | 0-9999min(with timing wait function) | ||||||
| Operation | Fixed temperature operation | ||||||
| function | timing function, auto stop | ||||||
| Additional function | DOI-E model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| Sensor | Pt100 | ||||||
| Accessory | Shelf | 2 | |||||
| Shelf frame | 4 | ||||||
| Specification | Load per rack | 15kg | |||||
| Shelf space | 35mm | ||||||
| Power Supply | AC110/220V±10%, 50/60Hz | ||||||
| Consumption | 800W/ | 1200W/ | 1600W/ | 2000W/ | 2300W/ | 3000W/ | |
| 3.6A | 5.5A | 7.2A | 9.0A | 10.5A | 13.6A | ||
| Internal Size(W*D*H) | 310*310*310mm | 350*350*350mm | 400*360*450mm | 450*420*450mm | 500*450*550mm | 600*500*750mm | |
| External Size(W*D*H) | 460*510*695mm | 500*550*735mm | 550*550*840mm | 590*610*830mm | 636*680*915mm | 730*680*1250mm | |
| Package Size(W*D*H) | 550*585*845mm | 590*625*885mm | 640*635*985mm | 690*690*985mm | 740*725*1085mm | 860*790*1400mm | |
| NW/GW | 33/37kg | 37/43kg | 44/49kg | 50/56kg | 60/66kg | 94/120kg | |
| Optional Accessories: | DOI-E model: Shelf; | ||||||
