Description

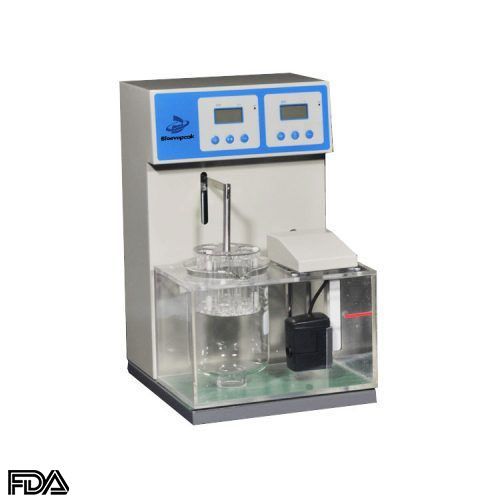

Disintegration time limit tester is a drug test instrument to test the disintegration time limit of tablets, capsules and pills in accordance with Chinese Pharmacopoeia.
Main features:
- 1 set of basket.
- The instrument controls the bath temperature at 37.0℃ automatically (prescribed by Pharmacopeia). High-precision digital electronic sensor is adopted to ensure the high precision and high accuracy of water bath temperature without the need for calibration.
- The instrument sets the lifting time of baskets to be 15min automatically, which can also be reset at any time.
- It adopts the computer control technology which is centered on SCM to control two performance parameters including bath temperature and working time intelligently.
- The instrument can monitor bath temperature, give over-temperature alarm and protect itself automatically.
Specifications
| Model | DITT-1 |
| Temperature prefabrication range | room temperature～50℃ |
| display resolution | 0.1℃. |
| Temperature control accuracy | ±0.3℃ |
| Timing prefabrication range | 1min～900min |
| Time control accuracy | ±0.5min |
| Work noise | ＜60db |
| Number of lifting baskets | 1 set |
| Lifting frequency of basket | (30～31) times/min. |
| Lifting distance of basket | (55±1) mm |
| Minimum spacing from screen to beaker bottom | 25mm±2mm |
| Mesh size | standard configuration 2mm, (optional for 0.425mm and 1mm bore diameters) |
| Power supply | 220V50Hz |
| Total power | 600W |
| Overall dimensions | L*W*H 260mm*300mm*440mm |
