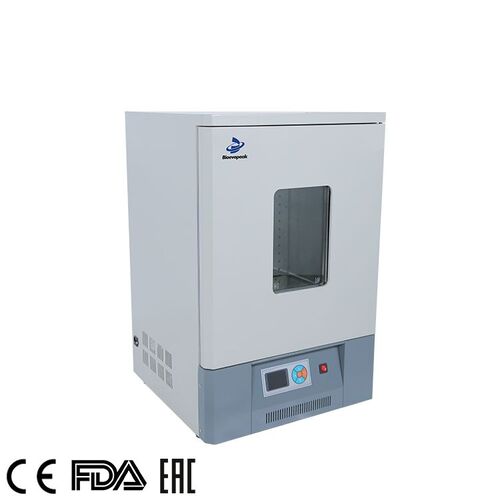

Cooling Biochemical Incubator, ICB-BZ Series
Capacity: 70L, 100L, 150L, 250L, 350L, 450L Temperature range: 0~60 ℃ Test hole: Optional φ25, 50, 80mm Safety device: Leakage protector/Over- temperature alarm

Description

The product is applicable to scientific research institutes, colleges, and production departments engaged in environmental protection, epidemic prevention, drug testing, livestock, and aquatic products. It is a dedicated thermostatic equipment for water analysis and measurement, culture, and conservation of bacteria, mucedine and microorganisms, plant cultivation, and breeding experiment.

Features
Energy saving
1. The sealing ring of the incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
2. Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
3. High efficiency and energy-saving compressor, stable temperature control, and low power consumption.
Intelligent LCD control
4. Large-screen LCD display, real-time display of parameters, a self-locking function of the screen, simple and convenient operation.
5. Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
6. Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.

Internal circulation system
1. Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
2. The circulation system adopts the back suction and the bottom vertical air supply mode.
3. The shelf is laser-hollowed out with round holes for better ventilation and better temperature uniformity.
Dedicated sheet metal processing
4. The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
5. The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
6. Built-in observation window to make the objects in the chamber clear at a glance.
7. The anti-scalding design of the door handle makes it easy to open and close the door.
Safety
8. Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
9. With limited temperature control sound and light alarm system.
10. Self-diagnosis function: displays fault information, which is convenient for judging the fault point.

Dedicated sheet metal processing
1. The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
2. The inner tank is made of high-quality brushed stainless steel, with strong corrosion resistance.
3. Built-in observation window to make the objects in the chamber clear at a glance.
4. The anti-scalding design of the door handle makes it easy to open and close the door.

Safety
1. Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
2. With limited temperature control sound and light alarm system.
3. Self-diagnosis function: displays fault information, which is convenient for judging the fault point.

Specifications

ModelICB-B70ZICB-B100ZICB-B150ZICB-B250ZICB-B350ZICB-B450Z
Capacity(L)70100150250350450
CirculationForced air convection
Dimension(W*D*H)Internal (mm)450*350*450510*380*510505*380*800550*450*1050550*550*1150700*550*1200
External (mm)560*555*885620*585*940635*575*1425675*650*1675685*780*1860830*760*1860
TemperatureRange (℃)0~60
Fluctuation (℃)±0.5
Resolution (℃)0.1
Uniformity (℃)±1℃
SensorPT100
ControllerPID
DisplayLCD
Timer(min)1-9999
MaterialInternal Stainless steel
External Electro-galvanized steel with antimicrobial powder coating
Shelves234
Test Hole (mm)Optional φ25,50,80,100
Safety DeviceLeakage protector/Over- temperature alarm
ElectricityVoltage/Frequency(V/Hz)220/50
Consumption (W)6606806907307801320
N.W./G.W. (kg)55/7056/8773/11598/140125/160158/200
Shipping Dimension (W*D*H) (mm)720*650*1050700*730*1140730*690*1610800*760*1930800*950*1900900*1150*2080
Optional1.Independent temperature limiting controller2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)
