Description

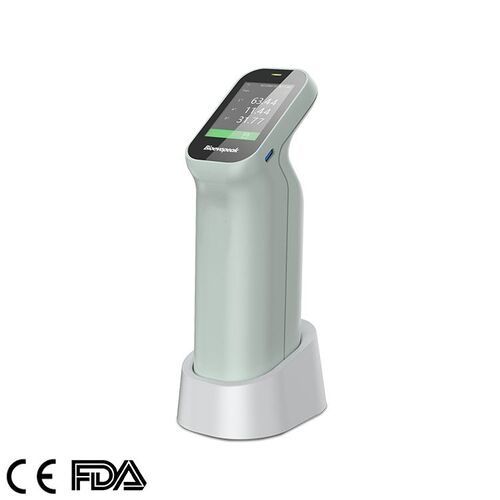

Colorimeter, SP-CLR410C, 411C, 412C has auto calibration to make it simple in operation and contains 30 kinds of parameters and 26 kinds of illuminants. Two apertures version are with switchable apertures to measure samples with different sizes.
Features of Colorimeter
- With Auto calibration
- Different apertures: Two Apertures / Small Aperture / Big Aperture
- Supports both SCI and SCE test which is more consistent with result of visual method.
- Many different kinds of test parameters：Opacity, whiteness index, yellowness index and other 30 kinds of test parameters
- Provide 26 kinds of illuminants for choice
- Good repeatability for stable measurement (Delta E*ab 0.08)
Specifications
| Model | SP-CLR410C | SP-CLR411C | SP-CLR412C |
| Type | Economical(Big Aperture) | Economical(Small Aperture) | Economical(Two Apertures) |
| Color | Green | ||
| Geometry | D/8 (Diffused illumination, 8°viewing)SCI (specular component included),SCE (specular component excluded) | ||
| Repeatability | Chromaticity Value: Standard deviation ΔE*ab≤ 0.04Average: dE*ab≤ 0.05Max.: dE*ab≤ 0.08(When a white tile is measured 30 times at 5 seconds interval) | ||
| Inter-instrument Agreement | ΔE*ab≤0.4 | ||
| Display Accuracy | 0.01 | ||
| Test Aperture/ Illuminated Area | Φ8mm/Φ11mm | Φ4mm/Φ6mm | Φ8mm/Φ11mm，Φ4mm/Φ6mm |
| Color Space and Indices | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness Index (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength | ||
| Illuminants | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | ||
| Support Color Matching Software | No | ||
| Light Source | LED | ||
| Camera | No | ||
| Calibration | Auto | ||
| Software | Windows | ||
| Accuracy Guarantee | Pass National Metrology Level I | ||
| Observer | 2°，10° | ||
| Sphere Size | 40mm | ||
| Spectroscopic Method | Integrated optics | ||
| Sensor | CMOS Sensor | ||
| Wavelength interval | 10nm | ||
| Wavelength Range | 400-700nm | ||
| Reflectance Range | 0-200% | ||
| Reflectance Resolution | 0.01% | ||
| Reflectance Resolution | 0.01% | ||
| Measurement Time | About 1 second | ||
| Display | IPS full color screen ,2.4 inches | ||
| Battery | Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh | ||
| Light Source Lifetime | 10 years, 1 million tests | ||
| Language | English | ||
| Storage | 100 pieces of data | ||
| Dimensions (L*W*H) | 180*60*51mm | ||
| Weight | 280g | ||
