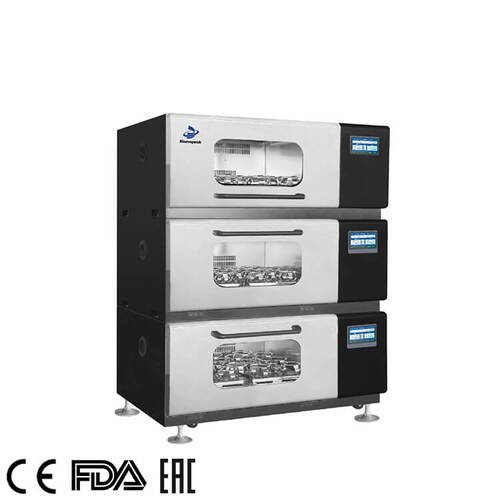

CO2 Shaking Incubator, ICB-CO2-2S202
Capacity: 310L CO2 range: 0~20.0% Convolution shaking Multidimensional drive Orbit Diameter: φ50mm( φ 26, φ 35mm can be customized)

CO2 Shaking Incubator occupies a small area and provides users with a large space for use. Each layer can be controlled independently, and each layer can be operated simultaneously at different temperature and rotation speeds or any layer can be operated according to needs.

Features
1. Convenient and easy operation. Users can easily pull the platform out to load or unload fixtures and then push it back and lock, which is fast and convenient for operation.
2. Three stackable layers structure. Each layer can be independently controlled. Temperature, speed, and time can be set alone. Users can run any layer as required.
3. High-pressure water rinses the bottom of the chamber and platform. Simple cleaning, fast and efficient.
4. Advanced USB data automatic record, download, and processing system. It has large storage and automatic recording & saving in the full test processing. The data could be directly downloaded by USB or automatically downloaded by wireless.
5. Automatic analyzing, listing tables, charting, and printing on downloaded dates. It can trace back to the whole process of the experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
6. High-quality servo motor. Accurate control speed, noiseless, durable, and high efficiency.
7. Multi-step rotation speed, temperature, and time control systems. Different rotational speed, temperature, and time can be set at one time; the Operation model can be automatically converted during operation.
8. Slow accelerate and decelerate design. Start and stop slowly to prevent bacteria or cells from being damaged by excessive shear force.
9. Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
10. Automatic defrosting function. It makes shakers operate stably in low temperatures for a long time.
11. High-precision speed control. The motor speed is stable and accurate, and the accuracy is±1RPM.
12. High-precision temperature control. The measurement accuracy is 0.1 ° C. Audible and visual alarm will be given when the measured temperature deviates from the set value.
13. Unique drive system. It makes the machine run smoothly, stably, durably, and reliably.
14. Open door protection. The machine stops running to protect the safety of the operator when the door opens.
15. Super visual 7-inch color touch screen. Modular classification displays different functions; a 7-inch touch screen under a large angle displays control parameters.
16. Real-time temperature and speed curve display function. Historical data and real-time data are displayed on the same chart for an easy check.
17. Memorized and protected operating parameters. In case of unexpected power failure, it can automatically restore the original setting process.
18. Function of encrypted and locked operating parameters. It can avoid human errors.
19. Continuously running or timing. Shakers can display the set time and time remaining
20. Unique slow-start design. It can prevent the splashing of shaking bottle liquid caused by a sudden startup, and effectively ensure the accuracy of quantitative experiments.
21. A remote WIFI operation is optional. Mobile phone operation can be realized.
22. Clock and date can be displayed (touch screen only).

Specifications

ModelICB-CO2-2S202
Capacity310L
CirculationForced air convection
Drive ModeMultidimensional drive
Shake ModeConvolution
Orbit Diameter φ50mm( φ 26, φ 35mm can be customized)
Cyclotron FrequencyRange0;20-350rpm/min(top floor 20-300)(To do static culture)
Resolution±1rpm
Dimension(W*D*H)External1420×820×630mm(per unit)
Platform905×505mm
CO2Range0~20.0%
Resolution± 0.1% (concentration: 5%)
TemperatureRange RT-20~ 65℃(Ambient-20℃)
Fluctuation≤0.1℃(37℃)
Resolution±0.1℃
Uniformity±0.6℃(37℃)
Flask ClampMax. Capacity250ml×53 or 500ml×35 or 1000ml×20 or 2000ml×11
(per unit)
Standard Capacity500ml×33
Sticky Mat250ml×46 or 500ml×33 or 1000ml×18 or 2000ml×11
(per unit)
ControllerPID
Display7 inch touch screen
Timer0-999.9h
USBY
Safety DeviceSelf-diagnosis, temperature runaway, abnormal alarm
ElectricityVoltage/FrequencyAC 220±10%V / 50Hz
Consumption1800W
N.W./G.W.260kg/296kg
Shipping Dimension (W*D*H)1580*990*830mm
