Product Description

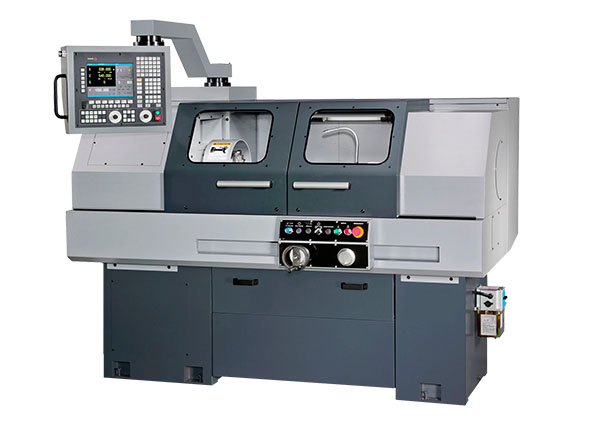

This is a compact industrial slant bed lathe with 8 station programmable turret. The machine is offered with industrial controls: FANUC/ Siemens/ Mitsubishi/ MTAB. Its design replicates industrial machine features such as cast iron bed, precision grade grounded ball screws, LM guide ways, servo motors, coolant system, AC panel cooler for control box, full machine guard, etc.
This can be integrated with automation components to create various configuration of Smart Factory Automation System (FMS, CIM) .
This is offered with optional accessories such as CNC Train software, e CNC e-learning, loading and unloading device, pneumatic chuck, auto door.
| Details | Unit | Flex Turn |
| Chuck Capacity | mm | 100 |
| Maximum Turning Diameter | mm | 80 |
| Maximum Turning Length | mm | 190 |
| Positioning Accuracy | mm | 0.01 |
| Spindle Nose Taper | Nos. | A2-3/MT3 |
| Hole Through Spindle | mm | 20 |
| Spindle Speed Range | RPM | 150-4000 |
| Spindle Motor | KW | 3.7 |
| No. of Stations | Nos. | 8 |
| X/Z Axis Travel | mm | 95/210 |
| Rapid X/Z | mm/min | 5000 |
| Feed Rate | mm/min | 0-5000 |
| Tailstock Base Stroke | mm | 170 |
| Quill Stroke | mm | 40 |
| Quill Diameter | mm | 35 |
| Tail Stroke Taper | MT 2 |
