Specification
| Internal dimension | 400*500*500mm | 500*500*600mm | 500*600*750mm | 600*800*850mm | 1000*800*1000mm | 1000*1000*1000mm | |
| External dimension | 900*1070*1400mm | 1000*1070*1500mm | 1000*1170*1650mm | 1100*1370*1750mm | 1500*1180*1900mm | 1500*1380*1900mm | |
| Voltage(V) | Sigle Phase 220V | Sigle Phase 220V | Sigle Phase 220V | Three Phase 380V | Three Phase 380V | Three Phase 380V | |
| Temperature range | -20℃,-40℃,-70℃~150℃ | ||||||
| Temp.& Humi.Adjust Way | Balanced Temperature Humidity Control System(BTHC),Intelligent PID Regulation | ||||||
| Temperature fluctuations | ≤±0.7℃ （without load and temperature stable） | ||||||
| Internal Chamber Material | Stainless Steel 304 | ||||||
| External Chamber Material | Stainless steel or paint spray | ||||||
| Temperature uniformity | ≤±0.7℃ （without load and temperature stable） | ||||||
| Temperature deviation | ≤±1.0℃/ ±2.0℃ （without load and temperature stable） | ||||||
| Heating rate | 3℃/min in average | ||||||
| Cooling rate | 1℃/min in average | ||||||
| Humidity range | 20%～98%RH | ||||||
| Humidity deviation | 1 、≥75%RH：≤±3%RH ；2 、≤75%RH ：≤±7%RH | ||||||
| Cooling Method | Single-stage compression,Second-stage Compression; | ||||||
| Refrigerator | Hermertically Sealed France Tecumseh Compressor or Semi-hermetic BOCK Compressor | ||||||
| Cooling Method | Air-cooled | ||||||
Structure
Product Advantages

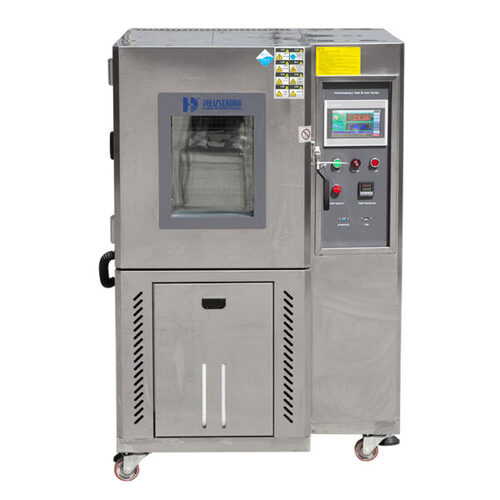

Temperature Humidity Chamber can simulate the natural environment ,such as -70℃–150℃ temperature range environment, and 20%–98% humidity environment.so this test chamber can do temperature test, humidity test and other environmental test in the programmable operating system. The key point of the climatic chambers be equipped with the tempered glass observation window, safety protection device, LCD touch screen controller. To ensure fast and efficient environment testing for the operator.
1.Touch Screen Control
2.Stable Performance
3.Data Recording
4.Leakage Protection
5.Over-temperature Protection
6.Customized Service
Cooling system
Adopt France Tecumseh compressor
Environmentally friendly refrigerant (R404a/R449a), adopts binary low temperature circuit system design, which is convenient for different temperature regions to work with different compressors
Test Hole
50mm test hole with thermal insulation function
View Window
Double-layer vacuum-strengthened glass, inner glued sheet conductive film is heated and defrosted ,observe clearly the specimen testing situation in the chamber
Door Handle
Adopt non-reaction, explosion-proof door handle, operating easily, safe and reliable.
