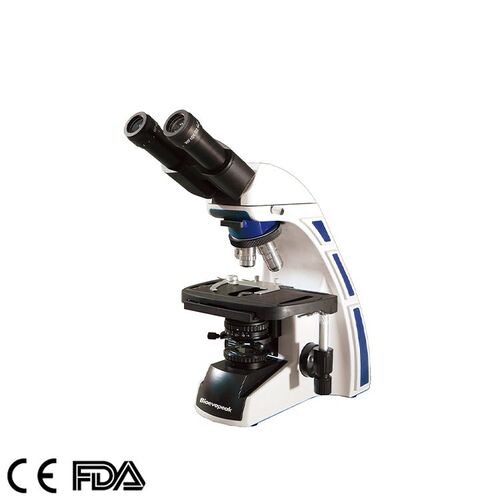

| Model | MSC-B203 |
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm |
| Eyepiece | WF10×22mm Wide Field Eyepiece WF10×22mm; *WF16×; *WF20× |
| Objective | Infinite plan Achromatic Objective: 4×，10×，*20×，40×，100×*Flour semi-apo abjective：4×，10×，*20×，40×，100×*Infinite Plan Phase Objective: Ph10x、20x、40x、100x |
| Nosepiece | Quadruple Nosepiece/*Quintuple Nosepiece |
| Stage | Double Layers Mechanical Stage 210X150mm/ 75X50mm |
| Condense | Abbe Condenser NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation,Fine Stroke 0.2mm per Rotation, Moving Range 24mm |
| Illumination | LED Illumination, Brightness Adjustable |
| *Optional | Phase Contrast Kit; Dark Field Attachment；Fluorescent Attachment |
| *Optional configuration | |
