Description
This instrument complies with the ergonomic principle, with superior optical performance, long operation time and low observation fatigue. It is suitable for medical institutions at all levels to do research demonstration, routine laboratory examinations, biology, bacteriology, clinical trials and teaching.
Specifications

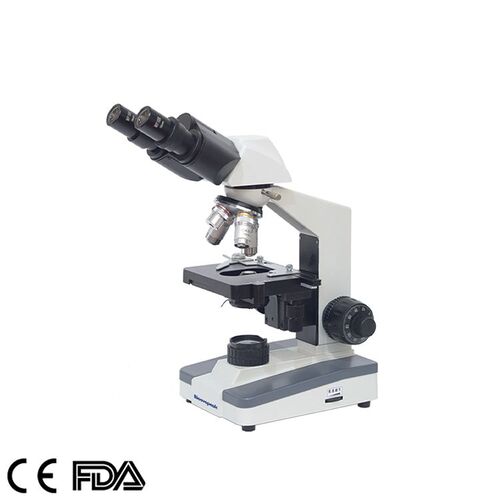

| Model | MSC-B103(Siedentopf) |
| Viewing Head | Seidentopf Binocular Head, lnclined at 30, Interpupillary 55-75mm |
| Eyepiece | Wide Field Eyepiece WF10X18mm |
| Objective | Achromatic Objective 4X,10X,*20x,40X,100XPlan Achromatic Objective: 4x 10x, 20x, 40x, 100x |
| Nosepeice | Quadruple Nosepiece |
| Stage | Double Layers Mechanical Stage 115X125mm/ 70X30mm |
| Condenser | Abbe NA1.25 with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination | LED Lamp, Brightness Adjustable |
| Halogen Lamp 6V 20W,Brightness Adjustable | |
| Package | Styrofoam |
| Carton | |
| Wooden Case |
