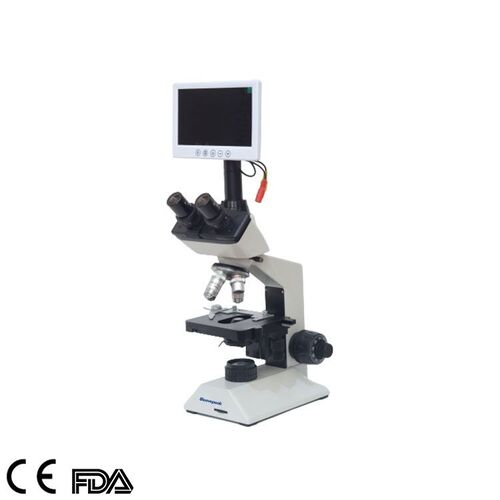

Description
Camera accessories
A camera can be added to the Trinocular Head.
USB 2.0 Camera/CCD/win10 Pad/Digital display.
LCD display system
7-inch high-definition imaging equipment, used in combination with a microscope, with the observation effect of the eye at each multiple, display mode: 16:9 / 4:3; screen resolution: 1024 * 600.
Digital display storage system
10-inch display screen,With 8.0M HDMI camera, the output resolution of HDMI is 720P@ 60fps; the photo resolution is 3840 * 2160; remote control is adopted.
Specifications
| Model | MSC-B102T(Siedentopf) |
| Viewing Head | Siedentopf free Trinocular Head inclined at 45°interpupillary (55-75mm) |
| Eyepiece | Wide Field eyepiece WF10X18mm |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic Objective 4X,10X,40X,100X |
| Stage | Double Layers Mechanical Stage 115X125mm/ 70X30mm |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Illumination | LED Illumination, Brightness Adjustable |
| Halogen Lamp 100V-240V/ 6V20W | |
| Plan-concave Mirror | |
| Package | Styrofoam |
| Carton | |
| Wooden Case | |
| Filter | White Filter |
| / | Note: ● Standard Outfit, ○ Optional |
